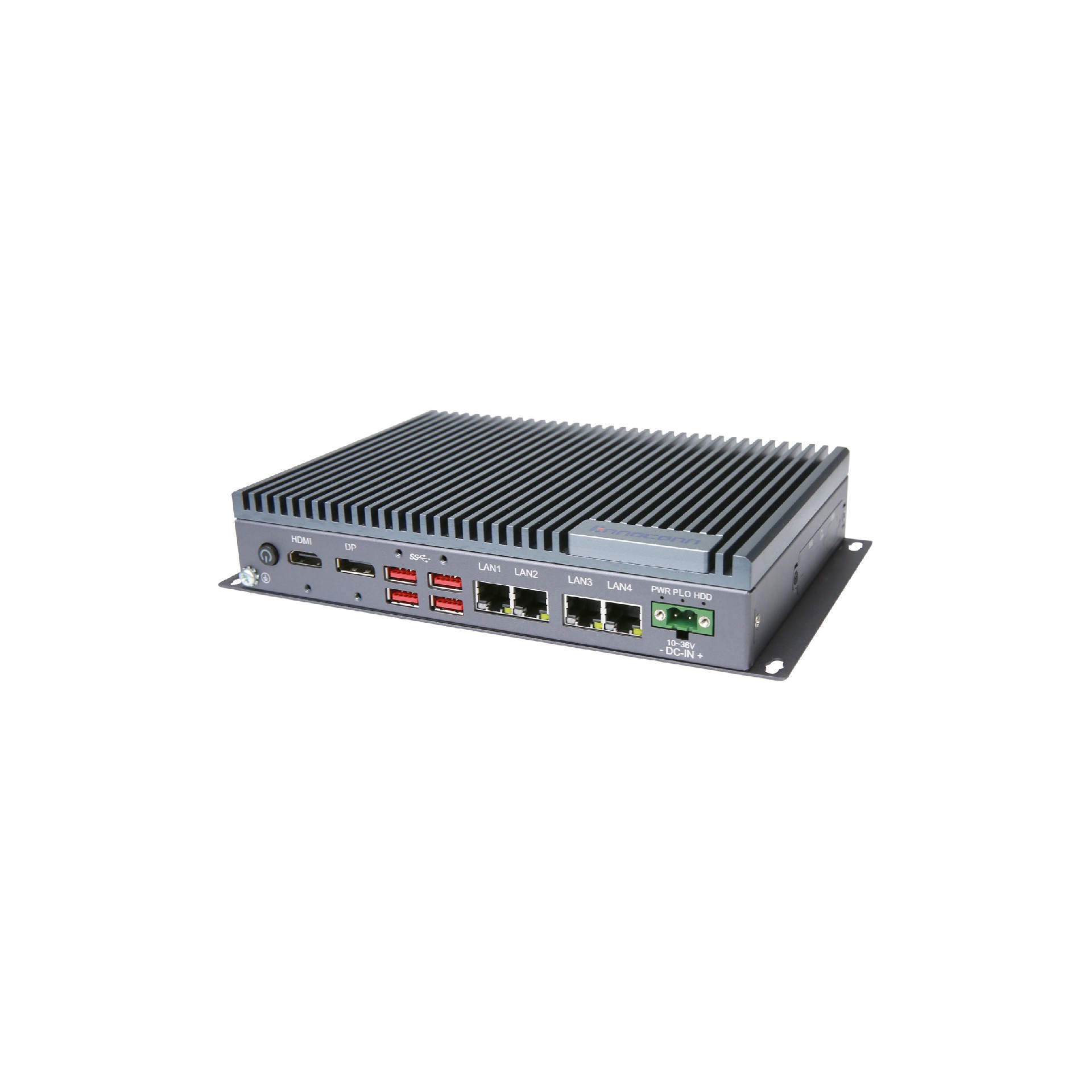

嵌入式工控機：CES-R814(R826)(R856)-W44B

嵌入式工控機：CES-R814(R826)(R856)-W44B板載Intel?8th Gen. U Processors i3-8145U/i5-8265U/i7-8565U CPU,主頻最大可以達到2.1GHz支持單通道DDR4 2133/2400 MHz SO-DIMM內存插槽，內存容量最大可達32GB支持4個千兆網口支持DP/HDMI/EDP 擴展同步于/異步顯示內置2 x Mini-PCIe,1 x M.2 2242,1 x M.2 2230(CNVI),1 x

在線咨詢全國熱線
400-816-0035

板載Intel^? 8th Gen. U Processors i3-8145U/i5-8265U/i7-8565U CPU,主頻最大可以達到2.1GHz
支持單通道DDR4 2133/2400 MHz SO-DIMM內存插槽，內存容量最大可達32GB
支持4個千兆網口
支持DP/HDMI/EDP 擴展同步于/異步顯示
內置2 x Mini-PCIe,1 x M.2 2242,1 x M.2 2230(CNVI),1 x M.2 3042/3052 多種模塊擴展
10~36V寬壓設計，可鎖附DC-IN接口

嵌入式工控機

系統 System

處理器 Processor	Intel^? 8th Gen. U Dual Core Processors i3-8145U (2.1GHz up to. 93GHz) Intel^? 8th Gen. U Quad Core Processors i5-8265U (1.6GHz up to. 93GHz) Intel^? 8th Gen. U Quad Core Processors i7-8565U (1.8 GHz up t4o.6GHz)
內存 Memory	1 x DDR4 2133/2400MHz SO-DIMM up to 32 GB
圖形 Graphics	Intel@UHD Graphics620, dual display
存儲 Storage	1 x mSATA Colay mini-PCIe Connect 1 x M.2 2242 SSD 1 x 2.5" SATA 3.0 HDD/SSD BAY ( 與M.2 2242 組Raid 0/1)
操作系統 OS	Windows 10, Linux
看門狗定時器 Watchdog Timer	Programmable 255 levels timer interval, from 1~255 sec/min

外部接口 External I/O

網口 Ethernet	4 x RJ45, Intel^? i211GbE (10/100/1000 Mbps), support Wake On Lan
顯示 Video	1 x HDMI: max resolution up to 4096x2304@24Hz 1 x DP: max resolution up to 4096x2304@60Hz
音頻 Audio	1 x Audio(Line-out&Mic-in 2 in 1) Realtek^? ALC888S HD Audio codec

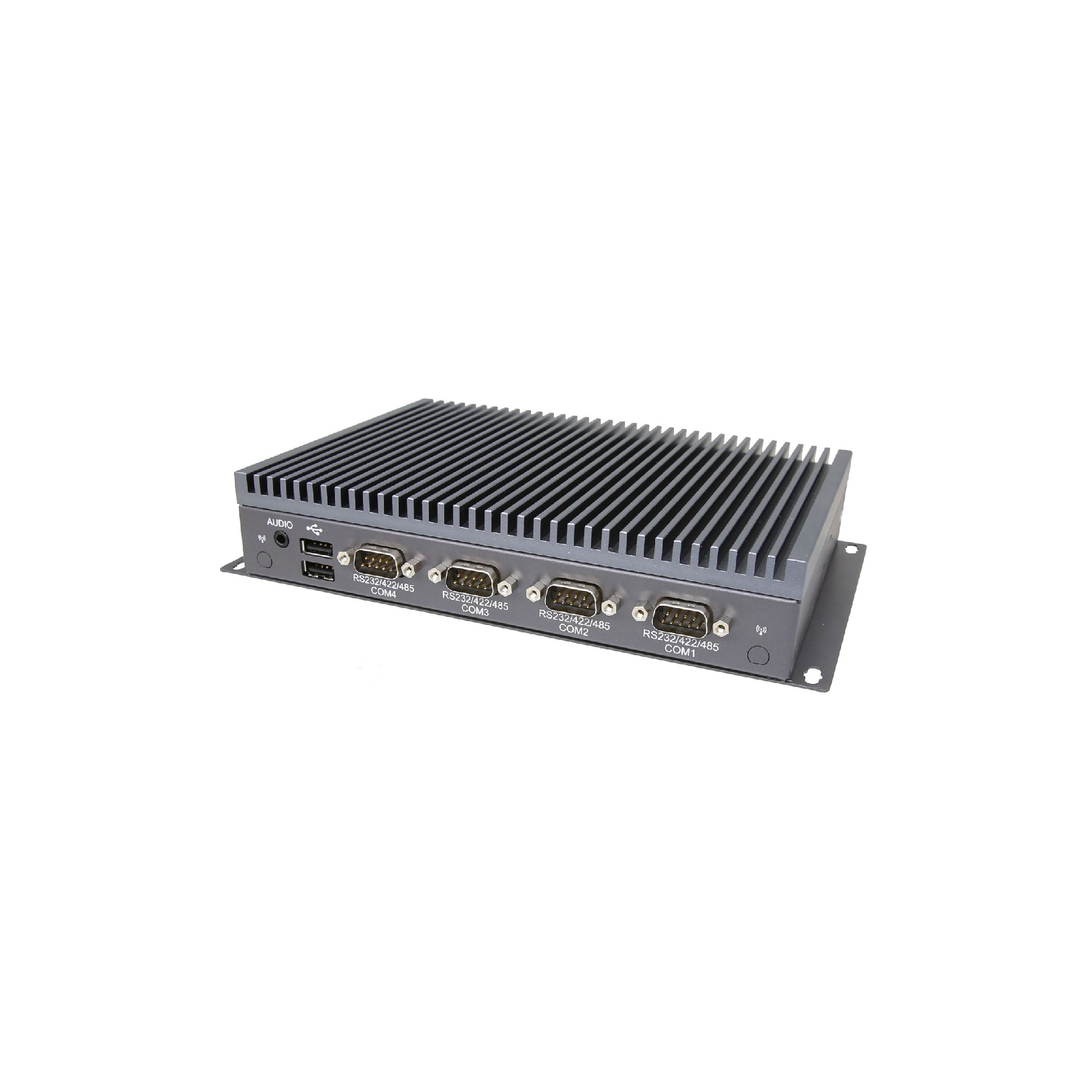

串口 COM	4 x RS232/422/485 auto-flow 2 x Internal RS232（optional by 3*3 pin-head）
USB	4 x USB 3.1 Gen2 2 x USB 2.0
按鈕 Button	1 x Power button (White for Power-on, Blink for Sleep mode,Off for Power-off)
指示燈 LED	1 x Power LED (Green for DC-IN) 1 x HDD LED (Green blink for Data read or write) 1 x programmable LED (Green Default monitoring CPU temperature)

內部接口 Internal I/O

擴展接口 Expansion	1 x Mini-PCIe slot (PCIe/SATA/USB2.0 Singal Support） 1 x M.2 2230 Key-E slot (only supported CNVI WiFi module )
功放 Speaker	1 x Internal (3W 4Ω) Speaker pin-head
LPC	1 x LPC
GPIO	1 x Internal 8bit programmable GPIO pin-head
SIM 卡	1 x SIM Card socket for 3G/4G module

擴展模組 Extension module

Extension Module A (optional)	1 x Mini-PCIe slot (PCIe/USB2.0 Singal Supported) 1 x M.2 3042/3052 Key-B slot (5G communication module supported) 1 x eDP: max resolution up to 4096x2304@60Hz 1 x SIM socket for 5G module
Extension Module B (optional)	1 x Mini-PCIe slot (PCIe/USB2.0 Singal Supported) 1 x Internal USB3.0 1 x eDP: max resolution up to 4096x2304@60Hz [1]

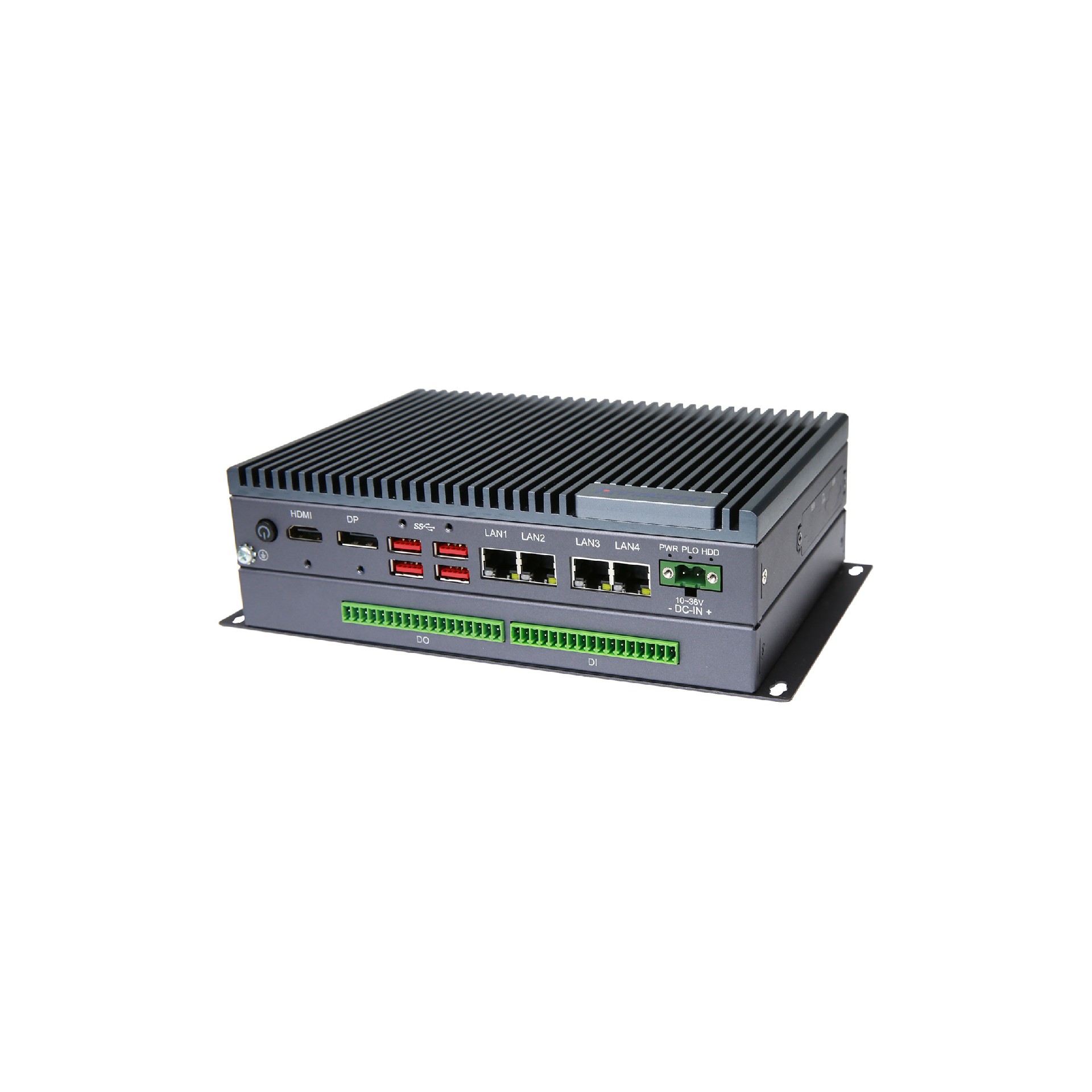

Extension Module C (optional)	1 x 32bit DI/O with optocoupler isolation DI 2500vrms, DO 2500vrms, response time ≤ 2ms, Output Frequency ≤ 500Hz, Maximum driving capacity 100mA, NPN or PNP by optional

環境 Environmental

操作溫度 OperatingTemp.	-20℃ ~ 60℃(SSD), 0℃ ~ 40℃(HDD)
存儲溫度 Storage Temp.	-40℃ ~ 85℃
濕度Relative Humidity	5% ~ 95%, 非凝結狀態Non-condensing
振動 Vibration	SSD: 5~500Hz, 5Grms operation (Only Use Solid state SSD) HDD: 5~500Hz, 1Grms operation
機械沖擊 Shock	Operation: 50G@11ms（Only Use Solid state SSD） Non-operation: 30G@11ms

電源 Power

電源輸入 Power Input

10~36V DC, 2-pin phoenix connector

機構Mechanical

外觀 Housing	鋁合金 Aluminum Alloy
安裝方式 Mounting	Desk-Mount（桌面式） Wall-Mount（壁掛式） VESA-Mount (100 x 100mm)(optional)

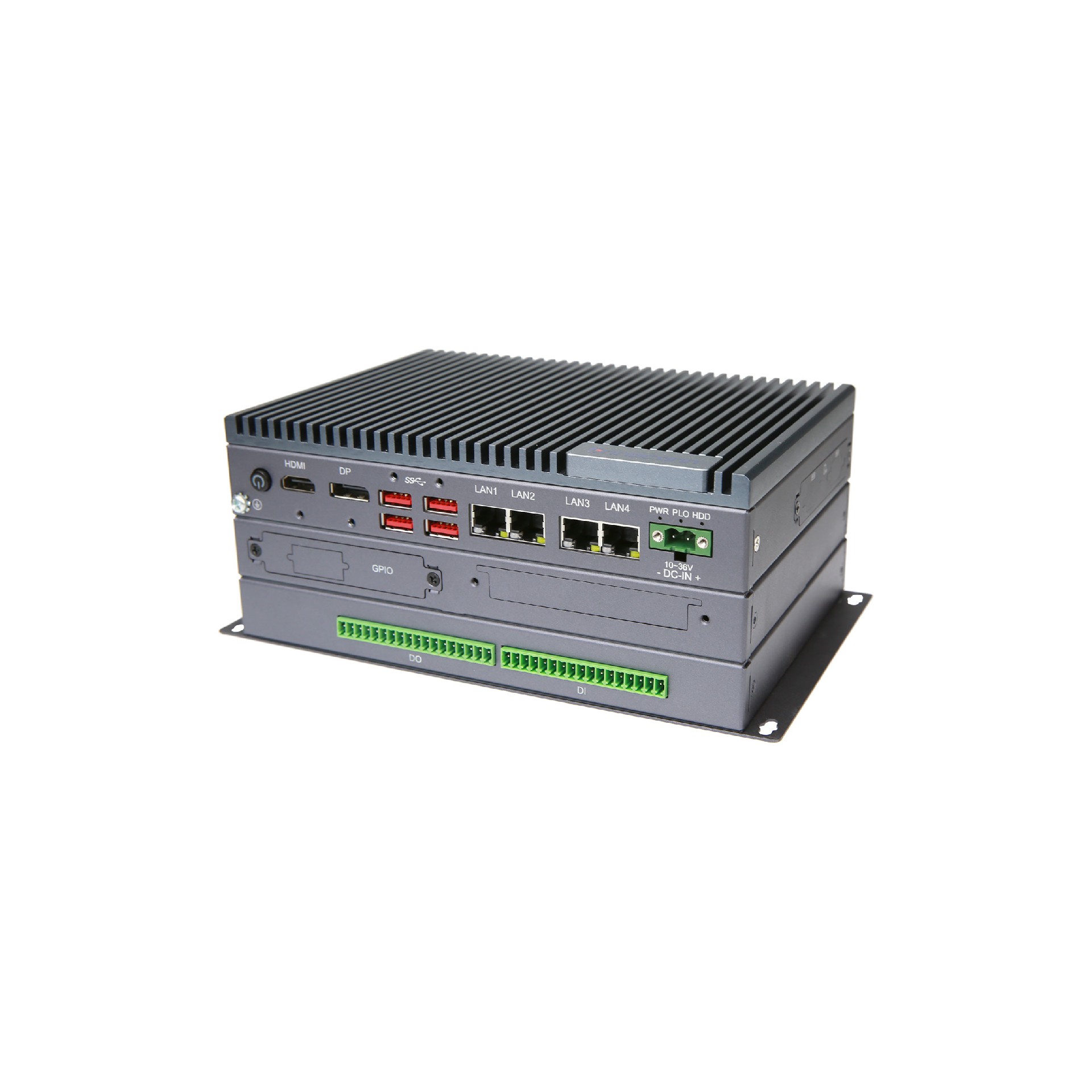

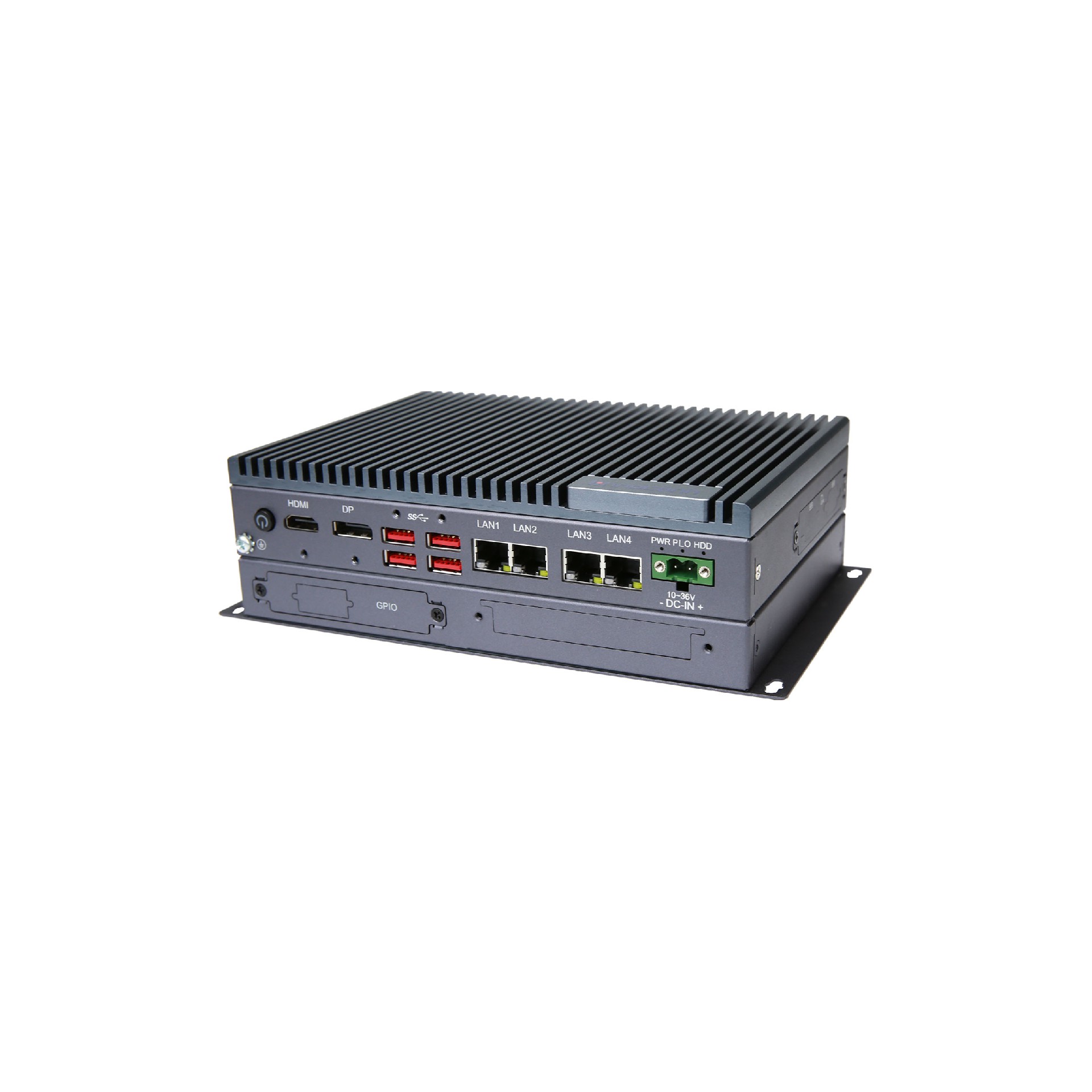

尺寸 Dimension	224 x 140 x 40.2 mm (基礎型) 224 x 140 x 64 mm (一層擴展) 224 x 140 x 87.8 mm (二層擴展)
重量 Weight	1.35kg

認證 Certification

安規認證 Safety Certification

CCC, CE, FCC
