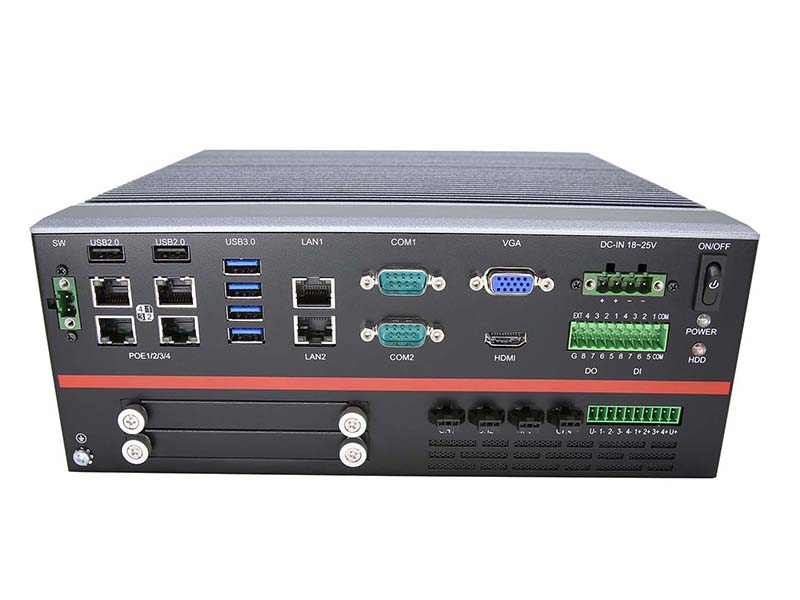

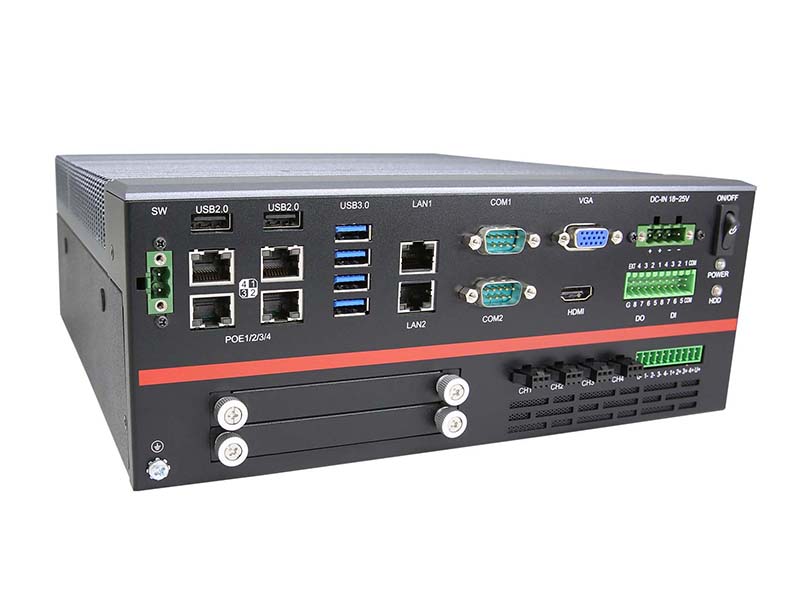

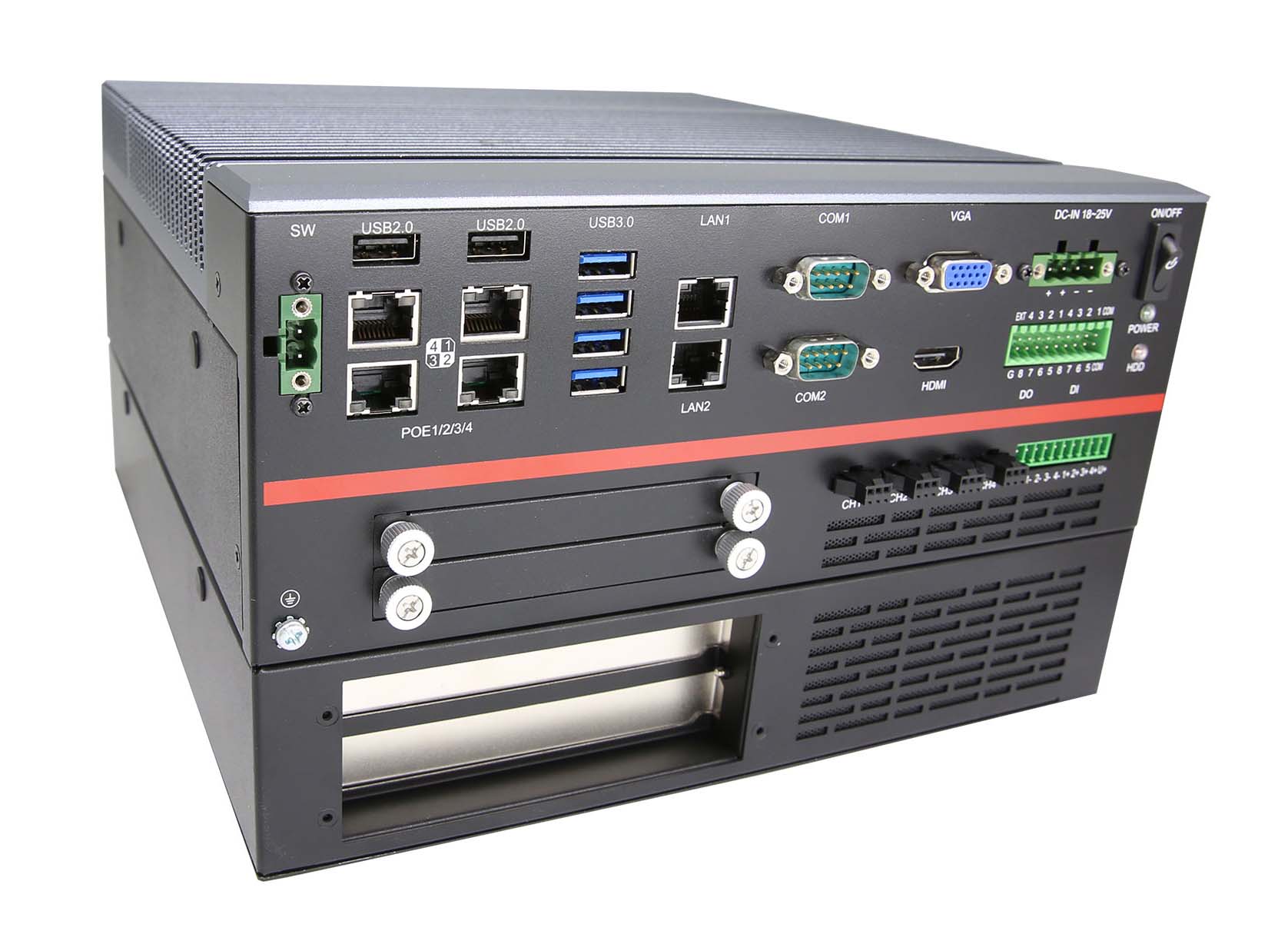

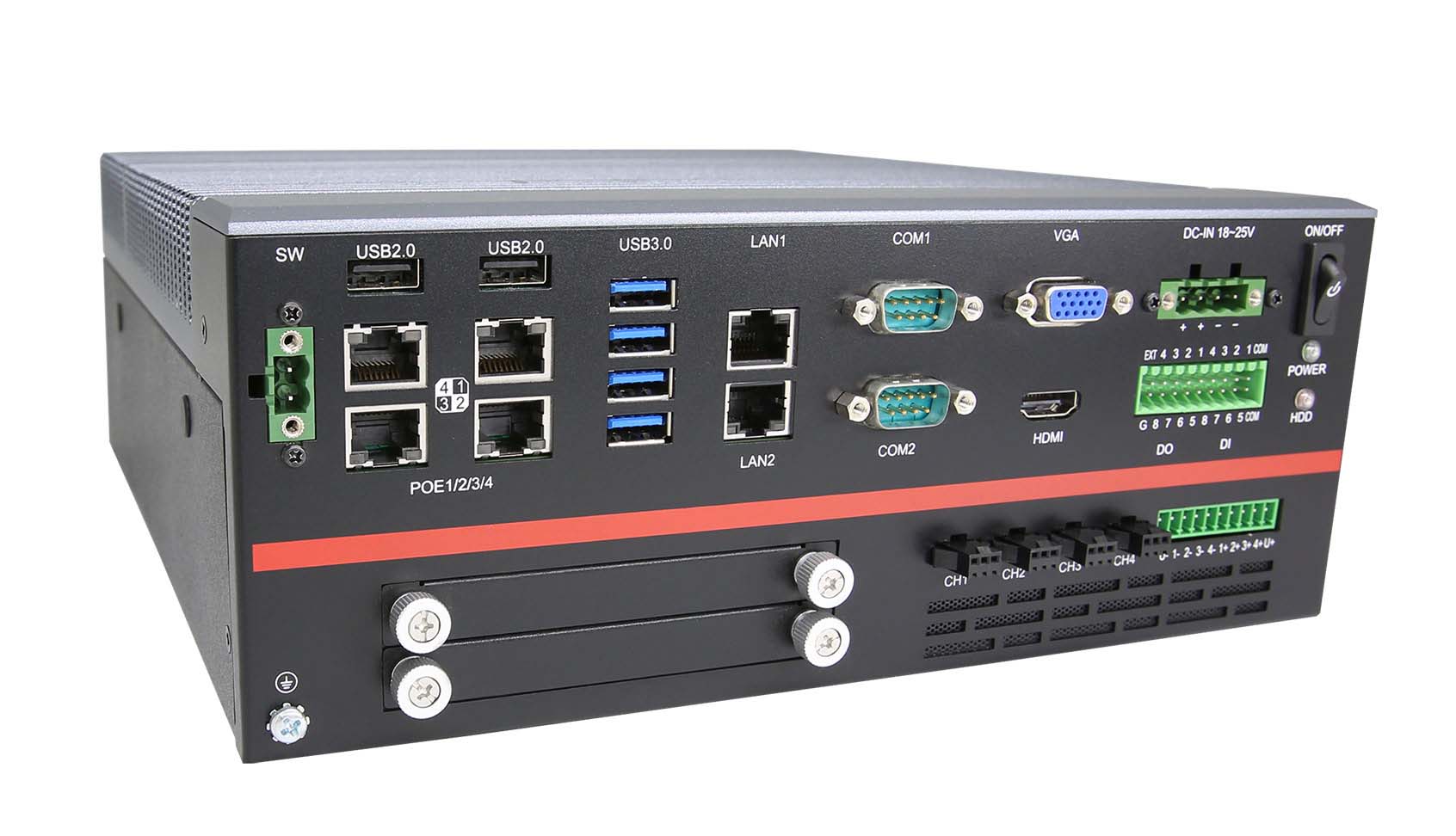

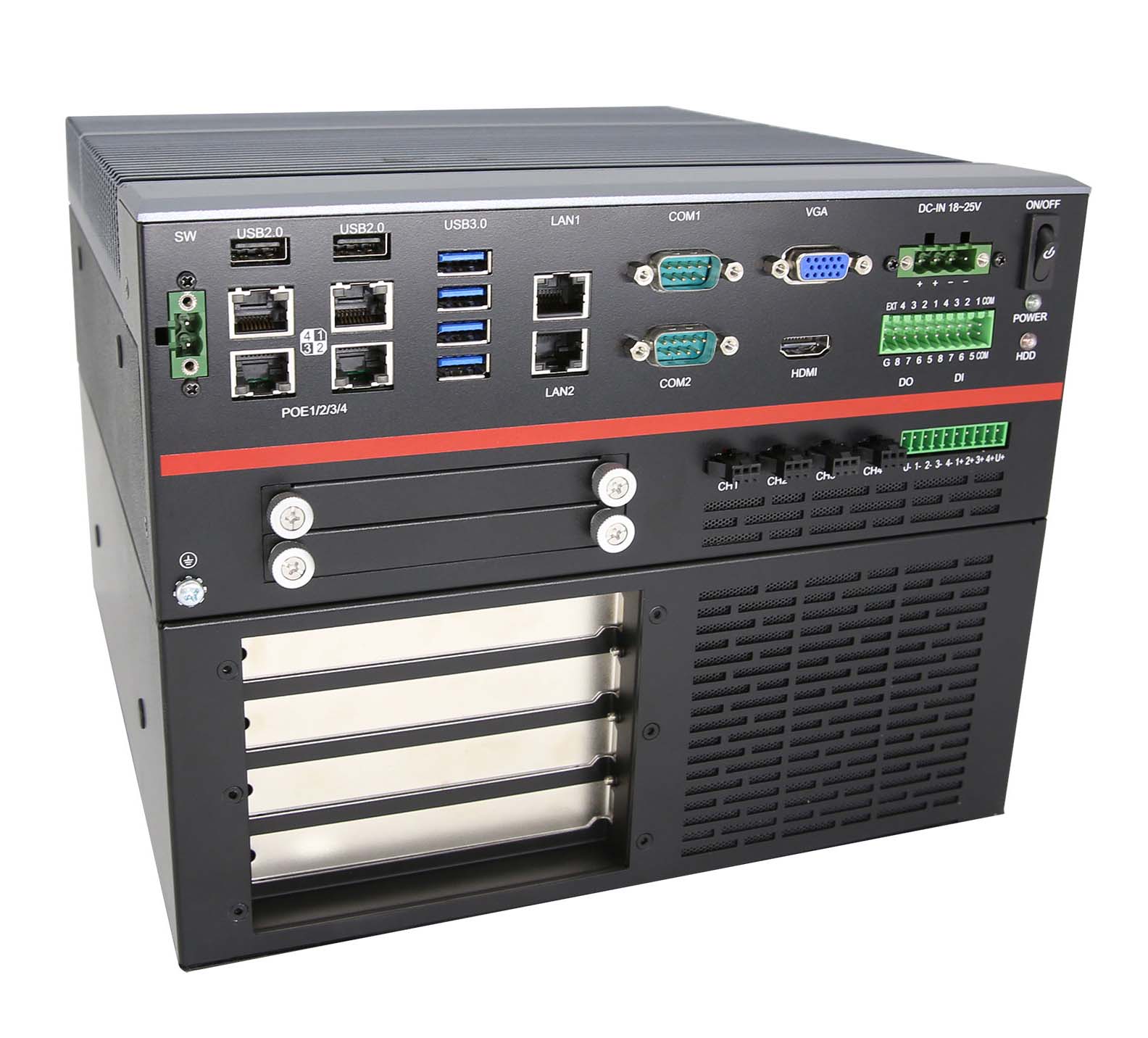

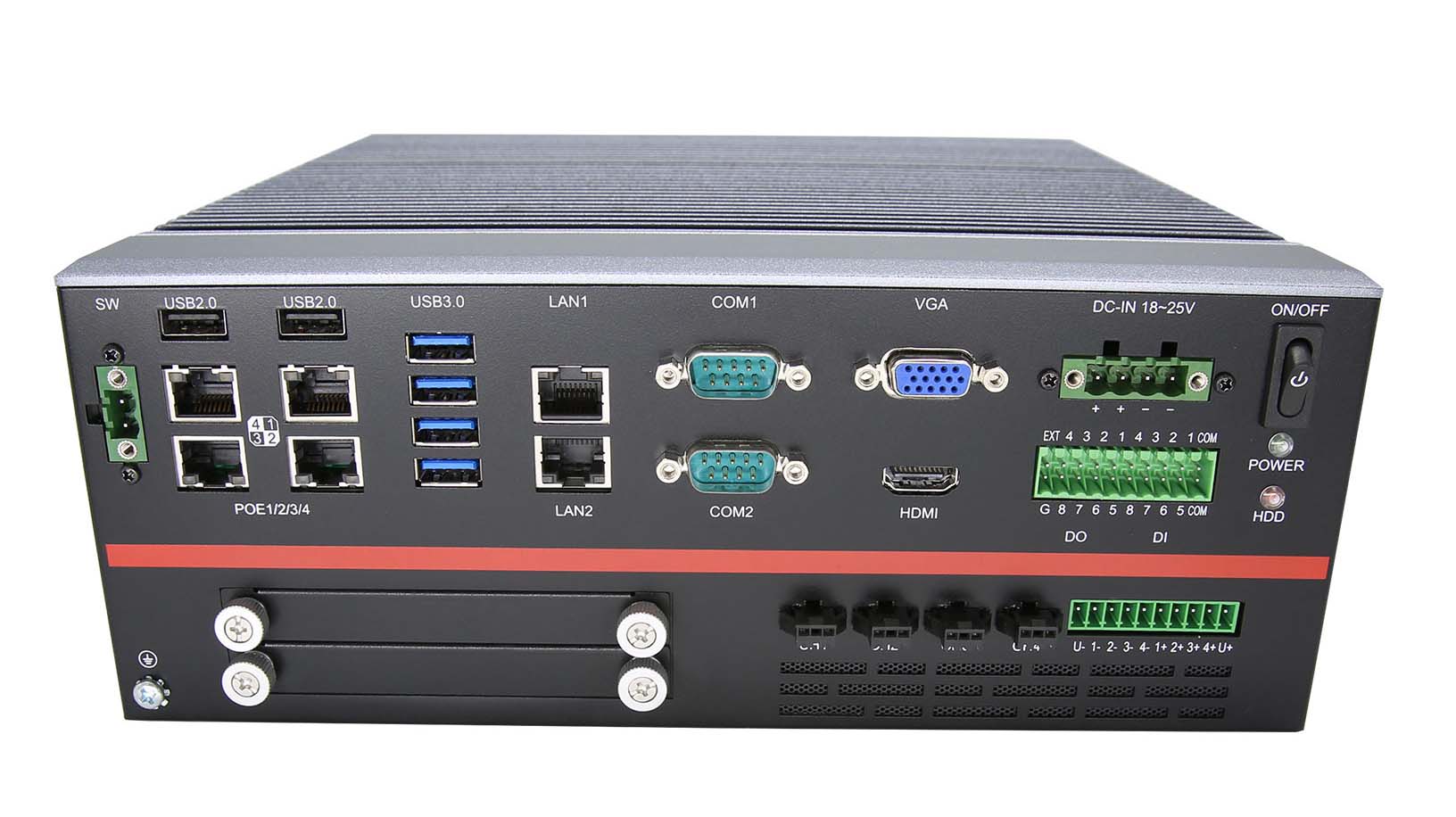

嵌入式工控機 CES-EH31-W6XX

Intel? 8/9 Gen. LGA1151 Pentium/Celeron/Core CPU; H310 chipset; 6 x LAN (include 4 x POE); 4 x Lighting Port; 16bit isolated DOI; BT, 4G/5G expansion; 3 x COM; 4 x USB3.0; 3 x USB2.0; 19-24V power input

在線咨詢全國熱線
400-816-0035

Intel^? 第八/九代 Core? i 臺式機處理器（LGA1151針）Intel^? H310芯片組
Intel^? 六口千兆網口，其中四口為POE網口, 單口最大功耗15W
VGA+HDMI 雙顯示輸出
支持光源控制模組(選配)，單口最大功耗60W，4口最大功耗70W
8路光耦隔離輸入，8路光耦隔離輸出（支持NPN/PNP切換)
2個2.5寸HDD/SSD 可抽取槽
1個Mini-PCIe 可配mSATA SSD或其它USB2.0 信號擴展模塊
4個USB3.0 Gen1和2個USB2.0, 內置1個USB2.0 可接插加密狗
1個RS-232/422/485, 1個RS232,1個RS232(可選)
支持2槽擴展卡(選配) 包含 1x PCI, 1x PCIe x 16
支持寬壓19-24V 輸入，鳳凰端子鎖附，有過流過壓反向保護
支持寬溫：-10~50℃（無風流）

產品規格

系統 System

處理器 Processor	Intel^? 8/9 Gen. LGA1151 Core ? i CPU
芯片組 Chipset	Intel H310 PCH
內存 Memory	2 x DDR4 2400/2666MHz SO-DIMM,up to 32GB
圖形 Graphics	Intel^? UHD Graphics 630
存儲 Storage	1 x Mini-PCIe slot for m SATA SSD 2 x SATA3.0 connector for 2.5inch HDD/SSD
操作系統 OS	connector for 2.5inch HDD/SSD
看門狗定時器 Watchdog Timer	Programmable 255 levels timer interval,from 1~255 sec/min

外部接口 External I/O

網口 Ethernet	1 x Intel^? I211AT GbE (10/100/1000Mbps) 1 x Intel^? I219LM GbE (10/100/1000Mbps)
顯示 Video	1 x VGA,max resolution up to 2048 x 1536@50Hz 1 x HDMI 1.4,max resolution up to 4096 x 2304@24Hz
存儲 Storage	2 x 2.5" SATA 3.0 Bay for 2.5inch HDD/SSD
POE	4 x Intel^? I211AT GbE (10/100/1000Mbps) 802.3 af,max TDP 15W for each
串口 COM	1 x RS-232/422/485 BIOS adjustable & 1 x RS232 (On board) 1 x RS232(Cable expansion)
USB	4 x USB3.0 Gen1 compatible USB 2.0 2 x USB2.0
DIO	Mode: NPN/PNP (Switchable) 8in8out isolated DIO esponse time ≤ 20ms Input frequency: 1/2 Pin ≤ 200KHz, 3/4/5/6/7/8 Pin ≤ 500Hz High-voltage isolation up to 3000Vrms for DI & 2450Vrms for DO on all channels Driving capacity: 350mA max for NPN mode; 500mA max for PNP mode Support 5-24V isolated input on all channels
光源控制 Lighting Controller	4 Port lighting controller 24V output, PWM adjustment 0-100 levels brightness program adjustment 2.5A max current and 60W TDP for each channel,total 70W on all channels High-voltage isolation up to 3000Vrms on all channels Auto detect, dynamic tuning
按鈕 Button	Power Button
指示燈 LED	1 x Power LED (Green for Power-on, Blink for Sleep mode, Off for Power-off) 1 x HDD LED (Red blink for Data read or write)
遠程開關 Remote ON-OFF	1 x Remote ON-OFF

內部接口 Internal I/O

擴展接口 Expansion	1 x Mini-PCIe, Co-lay with SATA3.0&USB2.0 signal for multiple module expansion 1 x USB2.0 connector for internal dongle
可選擴展接口 ( 兩槽擴展卡) Optional (2 slot expansion card)	1 x Mini-PCIe with USB2.0 signal 1 x PCIe x 16 (GPU card length no longer than 248mm ) 1 x PCI 1 x SIM card for 3G/4G module

擴展模組 Extension module

環境 Environmental

操作溫度 OperatingTemp.	-10℃ ~ 50℃ 65W CPU Must have 2pcs 60*20 system fan -10℃ ~ 50℃ 35W CPU fanless
存儲溫度 Storage Temp.	-40℃ ~ 85℃
濕度Relative Humidity	5% ~ 95%, 非凝結狀態Non-condensing
振動 Vibration	SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation
機械沖擊 Shock	Operation: 10G@11ms Non-operation: 30G@11ms
電磁兼容 ESD	Contact 6KV, Air 10KV

電源 Power

電源輸入 Power Input	19-24V DC, AT/ATX Default Power consumption: Typical 180W; Maximum 330W Phoenix lockable connector Protection of over current/voltage and ereverse
顯卡電源 GPU Power supply	1. GPU card TDP ≤ 120W, share power supply with system from 330W adapter 2. GPU card TDP > 120W,additional power supply separate with system (developing)

機構Mechanical

外觀 Housing	鋁合金 Aluminum Alloy
安裝方式 Mounting	桌面式 (Desk-Mount include horizontal and vertical)

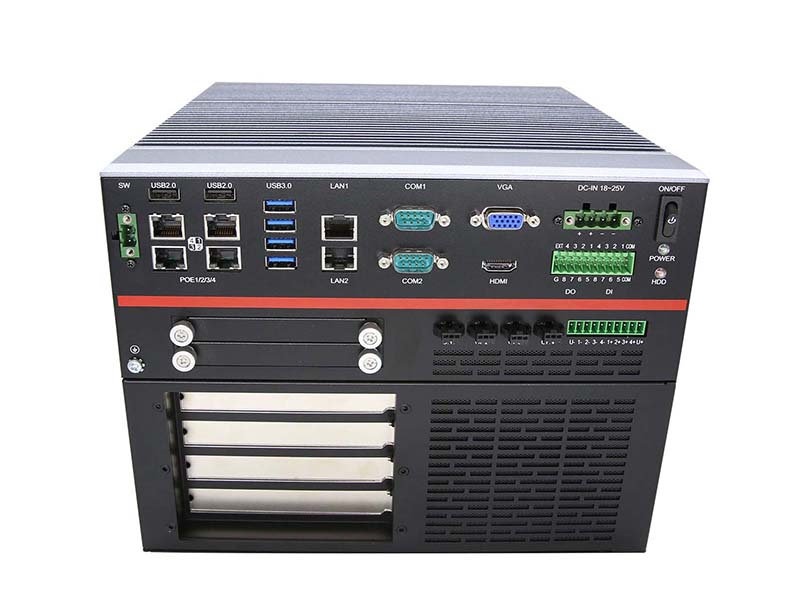

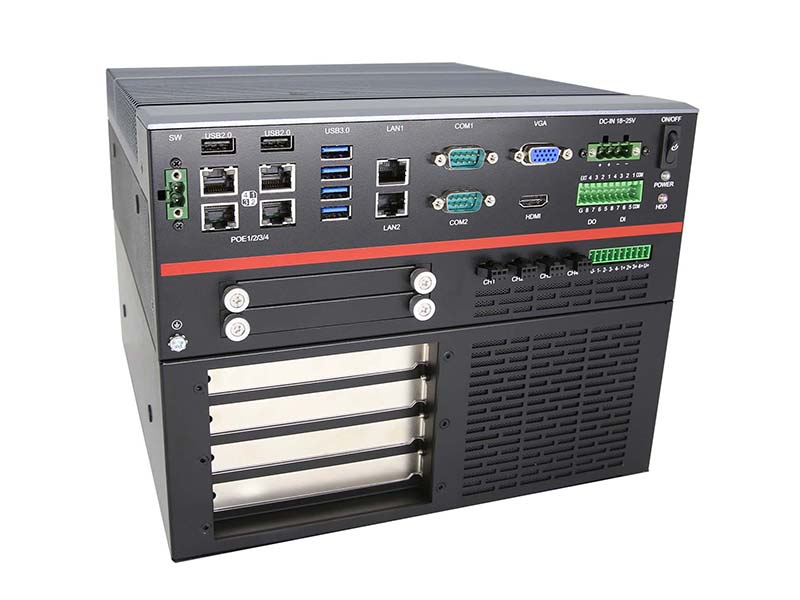

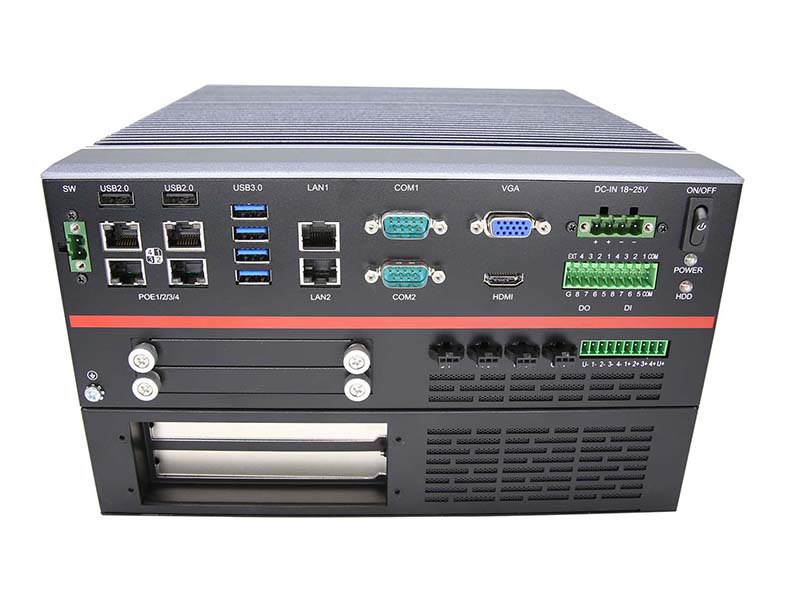

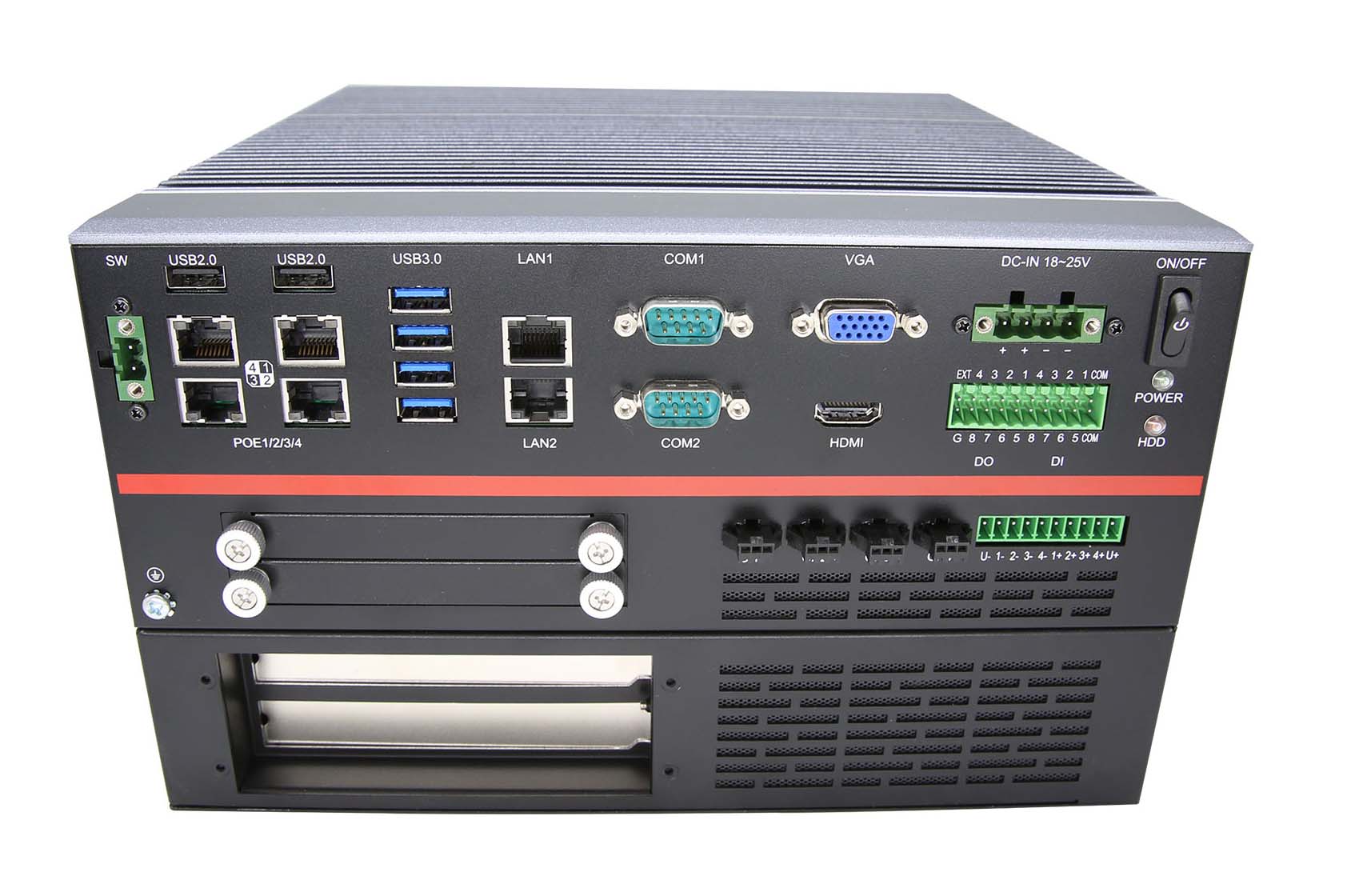

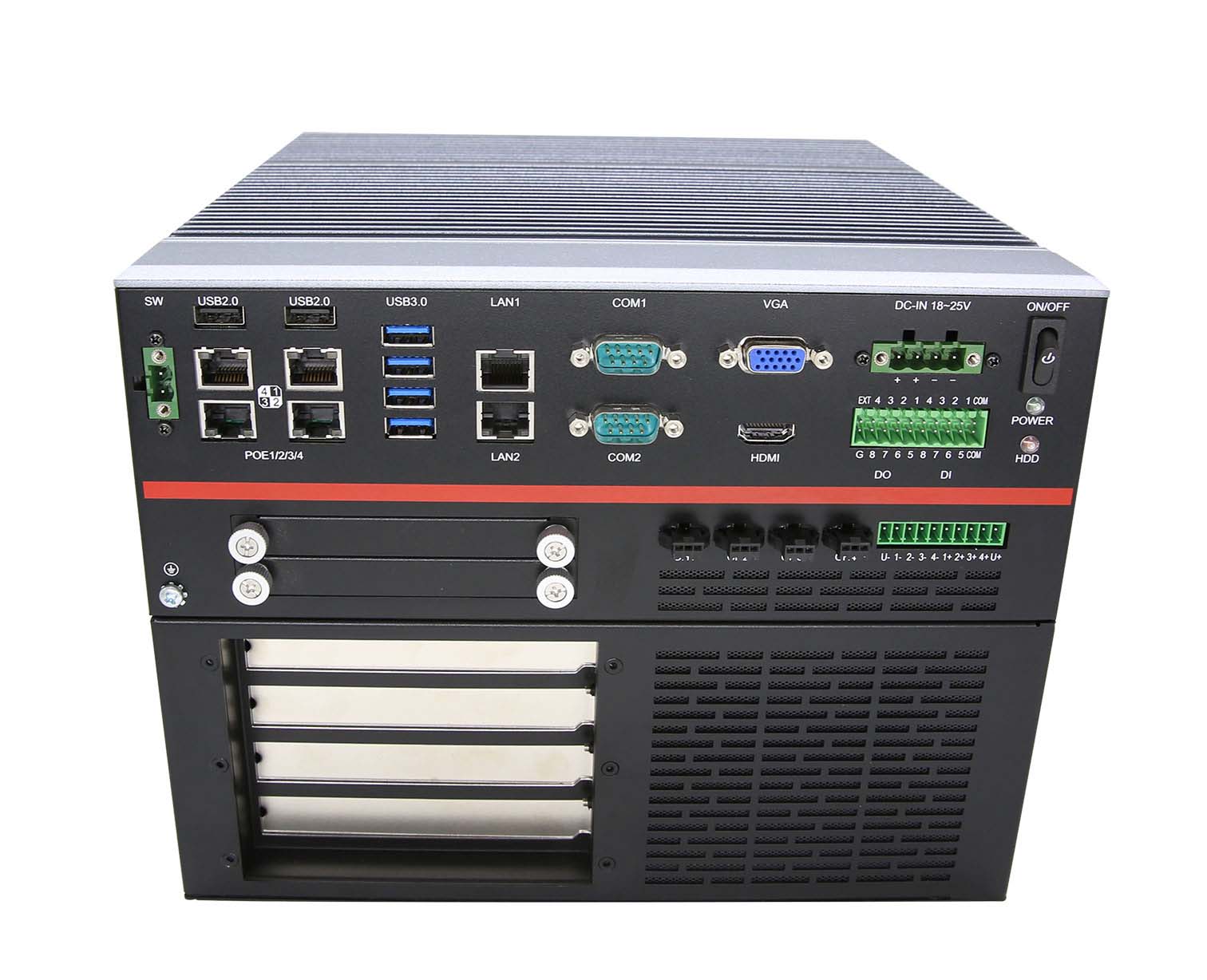

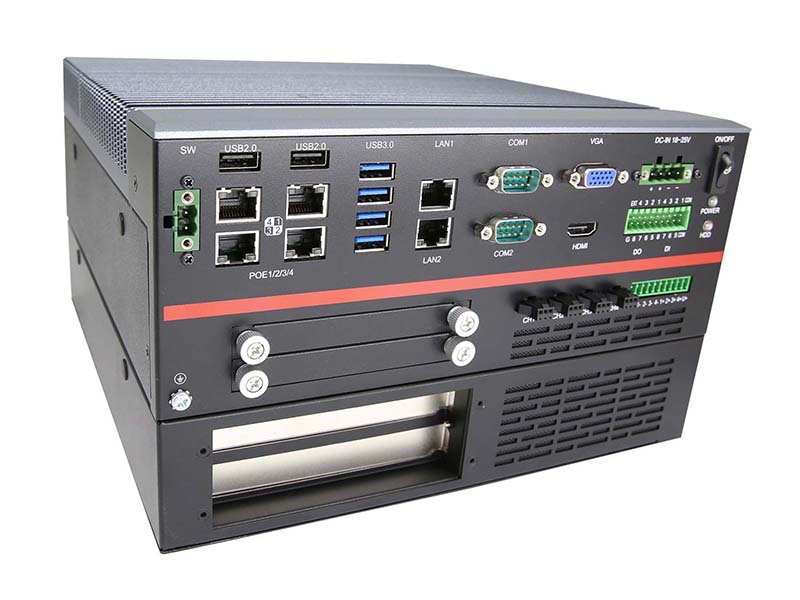

尺寸 Dimension	Regular model: 260 x 100 x 270 mm (W x H x D) Two slot expansion model: 260 x 156 x 270 mm (W x H x D)
重量 Weight	Regular model: 4.5kg Two slot expansion model: 5.5kg

認證 Certification

安規認證 Safety Certification

CCC
