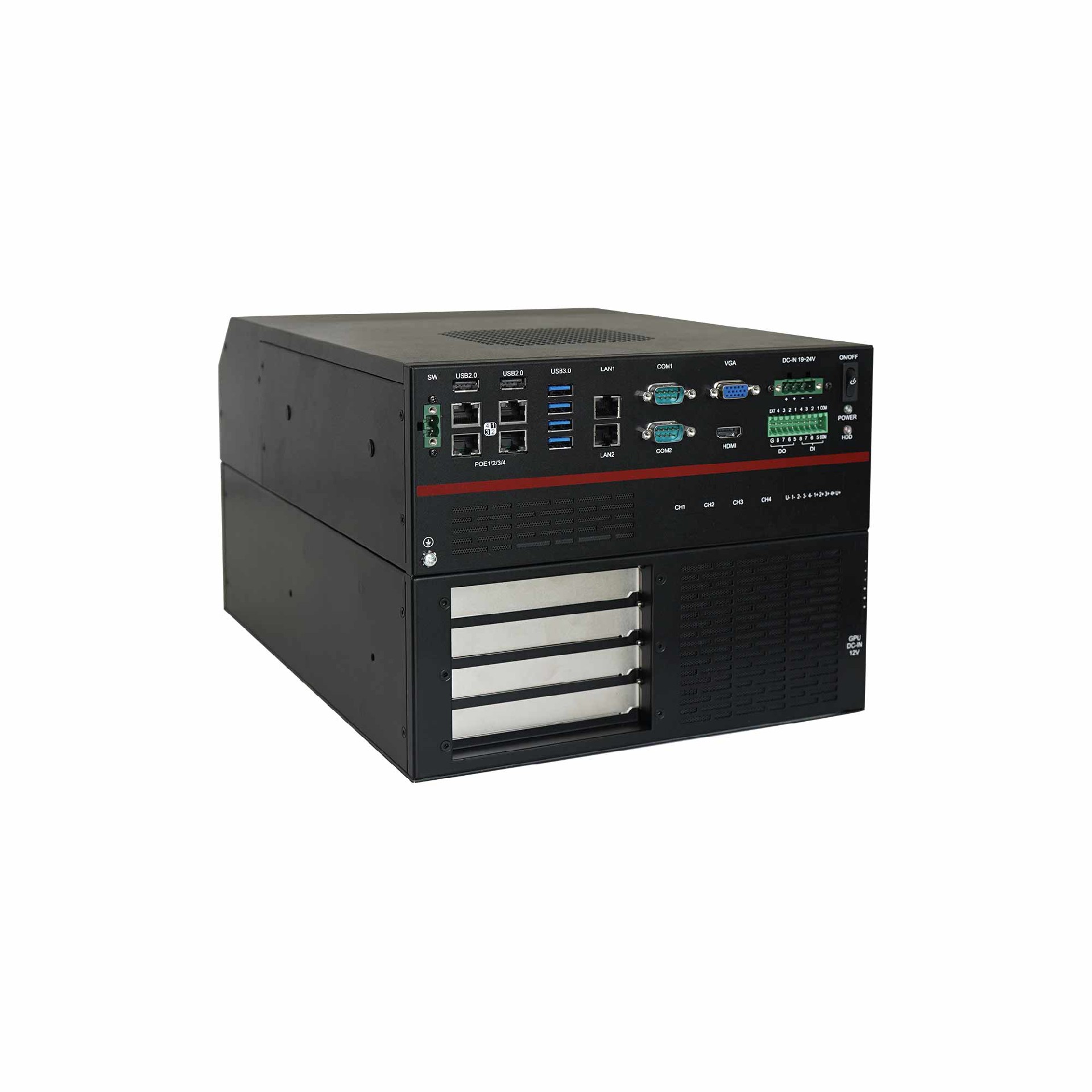

桌面型工控機：CEFS-EQ37-W624-PlusPX

桌面型工控機：CEFS-EQ37-W624-PlusPXIntel?第八/九代 Core? i 臺式機處理器（LGA1151針）Intel?Q370 芯片組，6 cores max TDP 65W, 8 cores max TDP 35WIntel?六口千兆網口，其中四口為POE網口, 單口最大功耗15WVGA+HDMI 雙顯示輸出光源4路24V恒壓，單路最大電流2.5A，總功耗最大70W8路光耦隔離輸入

在線咨詢全國熱線
400-816-0035

Intel^? 第八/九代 Core? i 臺式機處理器（LGA1151針）Intel^? Q370 芯片組，6 cores max TDP 65W, 8 cores max TDP 35W
Intel^? 六口千兆網口，其中四口為POE網口, 單口最大功耗15W
VGA+HDMI 雙顯示輸出
光源4路24V恒壓，單路最大電流2.5A，總功耗最大70W
8路光耦隔離輸入，8路光耦隔離輸出（支持NPN/PNP切換)
2個2.5寸HDD/SSD 可抽取槽
1個Mini-PCIe 可配mSATA SSD或其它USB2.0/PCIe 信號擴展模塊
4個USB3.1 Gen2, 4個USB3.0 Mini-PCIe擴展; 2個USB2.0板載，內置1個USB2.0 可接插加密狗
支持11個串口：1個板載RS-232/422/485 可調, 8個Mini-PCIe擴展RS-232/422/485;1個RS232,1個RS232(可選)
支持2槽擴展卡(選配) 包含 1 x PCI, 1 x PCIe X16
支持4槽擴展卡(選配) 包含 1 x PCI, 1 x PCIe X16, 2 x PCIe X4
支持寬壓19-24V 輸入，鳳凰端子鎖附，有過流過壓反向保護
支持寬溫：-10~50℃（無風流）
支持安裝大尺寸顯卡，最大尺寸336x146mm
安裝方便：可拆卸上下蓋，方便安裝與更換key parts

桌面型工控機

系統 System

處理器 Processor	Intel^? 8/9 Gen. LGA1151 Core ? i CPU 6 cores max TDP 65W，8 cores max TDP 35W
芯片組 Chipset	Intel Q370 PCH
內存 Memory	2 x DDR4 2400/2666MHz SO-DIMM, up to 64GB
圖形 Graphics	Intel^? UHD Graphics 630
存儲 Storage	1 x Mini-PCIe slot for m SATA SSD 2 x SATA3.0 connector for 2.5inch HDD/SSD
操作系統 OS	Windows 10, Linux
看門狗 Watchdog Timer	Programmable 255 levels timer interval, from 1~255 sec/min

外部接口 External I/O

網口 Ethernet	1 x Intel^? I211AT GbE (10/100/1000Mbps) 1 x Intel^? I219LM GbE (10/100/1000Mbps)
顯示 Video	1 x VGA, max resolution up to 2048 x 1536@50Hz 1 x HDMI 1.4, max resolution up to 4096 x 2304@24Hz
存儲 Storage	2 x 2.5" SATA 3.0 Bay for 2.5inch HDD/SSD, Q370 support RIAD 0/1
POE	4 x Intel^? I211AT GbE (10/100/1000Mbps) 802.3 af, max TDP 15W for each
串口 COM	1 x RS-232/422/485 BIOS adjustable & 1 x RS232 (On board) 1 x RS232(Cable expansion,Optional) 8 x RS-232/422/485 (Mini-PCIe card expansion,Optional)
USB	4 x USB3.1 Gen2 compatible USB 2.0 (On board) 2 x USB2.0 (On board) 4 x USB3.0 compatible USB 2.0 (Mini-PCIe card expansion,Optional） PS:Share DMI3.0 bandwidth from PCH, total 12Gbps on all ports
DIO	Mode: NPN/PNP (Switchable) 8in8out isolated DIO esponse time ≤ 20ms Input frequency: 1/2 Pin ≤ 200KHz, 3/4/5/6/7/8 Pin ≤ 500Hz High-voltage isolation up to 3000Vrms for DI & 2450Vrms for DO on all channels Driving capacity: 350mA max for NPN mode; 500mA max for PNP mode Support 5-24V isolated input on all channels
光源控制 Lighting Controller	4 Port lighting controller 24V output, PWM adjustment 0-100 levels brightness program adjustment 2.5A max current and 60W TDP for each channel, total 70W on all channels High-voltage isolation up to 3000Vrms on all channels Auto detect, dynamic tuning
電源按鈕 Power Button	Power Button
指示燈 LED	1 x Power LED (Green for Power-on, Blink for Sleep mode, Off for Power-off) 1 x HDD LED (Red blink for Data read or write)
遠程開關 Remote ON-OFF	1 x Remote ON-OFF

內部接口 Internal I/O

基礎擴展接口 Regular slot	1 x Mini-PCIe, Co-lay with SATA3.0&USB2.0&PCIe X1 signal for multiple module expansion 1 x USB2.0 connector for internal dongle
可選擴展接口 ( 兩槽擴展卡) Optional (2 slot expansion card)	1 x Mini-PCIe with USB2.0 signal 1 x M.2 3042/3052 Key-B, Co-lay with USB3.1 G2&PCIe signal 1 x PCIe X16 (GPU card Max size :336x146mm ) 2 x PCIe X4 1 x PCI 1 x SIM card for 3G/4G module 1 x SIM card slot for 5G module

環境 Environmental

操作溫度 Operating Temp.	-10℃ ~ 50℃ 65W CPU Must have 2pcs 60*20 system fan
存儲溫度Storage Temp.	-40℃ ~ 85℃
濕度Relative Humidity	5% ~ 95%, 非凝結狀態Non-condensing
振動 Vibration	SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation
機械沖擊 Shock	Operation: 10G@11ms Non-operation: 30G@11ms
電磁兼容 ESD	Contact 6KV, Air 10KV

電源 Power

電源輸入 Power Input	19-24V DC，AT/ATX Default Power consumption: Typical 180W; Maximum 330W(Suggestion,not include in package) Phoenix lockable connector Protection of over current/voltage and ereverse
顯卡電源 GPU Power supply	1. GPU card TDP ≤ 120W, share power supply with system from 330W adapter 2. GPU card TDP > 120W , Need additional power supply separate with system (developing)

機構 Mechanical

外觀 Housing	鋁合金 Aluminum Alloy
尺寸 Dimension	Four slot expansion model: 260 x 200 x 270 mm (W x H x D)
重量 Weight	Four slot expansion model: 7.5kg
安裝方式 Mounting	桌面式 (Desk-Mount include horizontal and vertical)

認證 Certification

安規認證 Safety Certification

CCC
