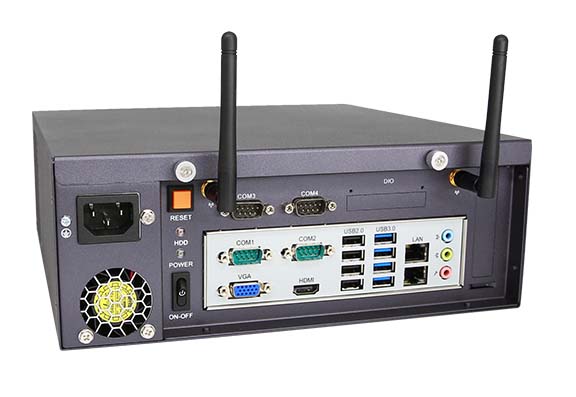

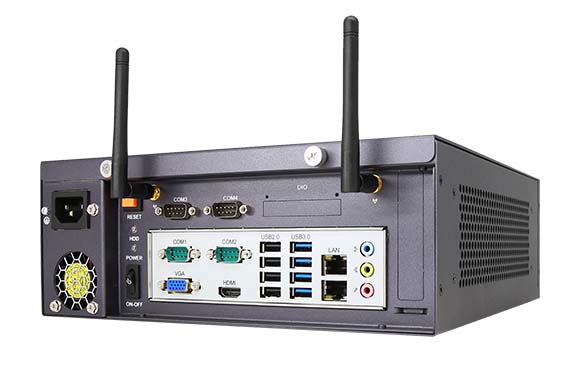

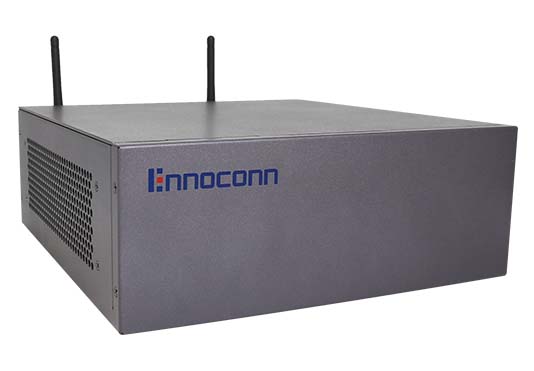

2U 工控機 CEFS-2D11-A240

2U, H110 Chipset, 2 x LAN, VGA/HDMI, 9 x USB, 4 x COM, PCIe, Mini-PCIe

在線咨詢全國熱線
400-816-0035

支持 Intel^{^?} 6th/7th Gen. Core? i3/i5/i7, Pentium^{^?}/Celeron^{^?} 高性能處理器
采用H110芯片組
支持雙千兆網口
支持 VGA、HDMI雙屏異顯
內置一根PCIe X4 Slot

產品規格

系統 System

處理器 Processor	Intel^? 6th/7th Gen. Core ? i3/i5/i7, Pentium^?, Celeron^? Processor, LGA1151 Socket, TDP up to 65W
芯片組 Chipset	Intel^? H110
內存 Memory	Dual Channel, 2 x SO-DIMM Slot, DDR4 1866/2133/2400MHz, up to 32GB
圖形 Graphics	Intel^? HD Graphics
存儲 Storage	2 x SATA3.0, 1 x M.2 2242
操作系統 OS	6th Gen CPU: Windows7/8/10, Linux 7th Gen CPU: Windows10, Linux

外部接口 External I/O

網口 Ethernet	2 x RJ45 Realtek 8111H GbE (10/100/1000 Mbps)
顯示 Video	1 x VGA: max resolution up to 1920 x 1200@60Hz 1 x HDMI: max resolution up to 4096x2304@24Hz
音頻 Audio	1 x Line-in, 1 x Line-out, 1 x Mic-in
串口 COM	4 x RS232
USB	4 x USB3.0, 4 x USB2.0
按鈕 Button	1 x Power Button, 1 x Reset Button
指示燈 LED	1 x Power LED, 1 x HDD LED

內部接口 Internal I/O

環境 Environmental

電源 Power

電源輸入 Power Input	100~240V (AC)
電源功耗 Power Watt	Flex ATX 250W

機構 Mechanical

認證 Certification

安規認證 Safety Certification

CCC
