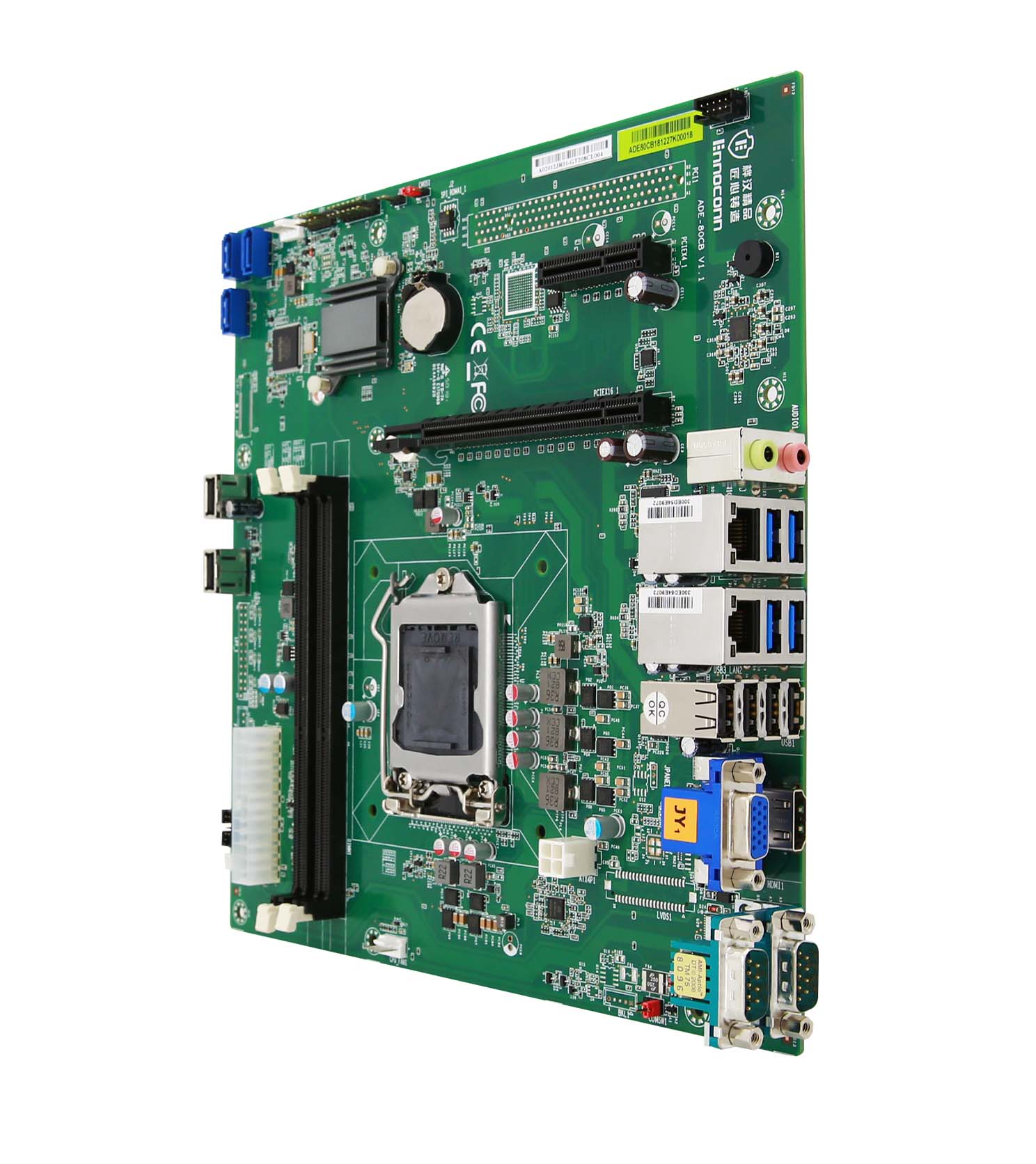

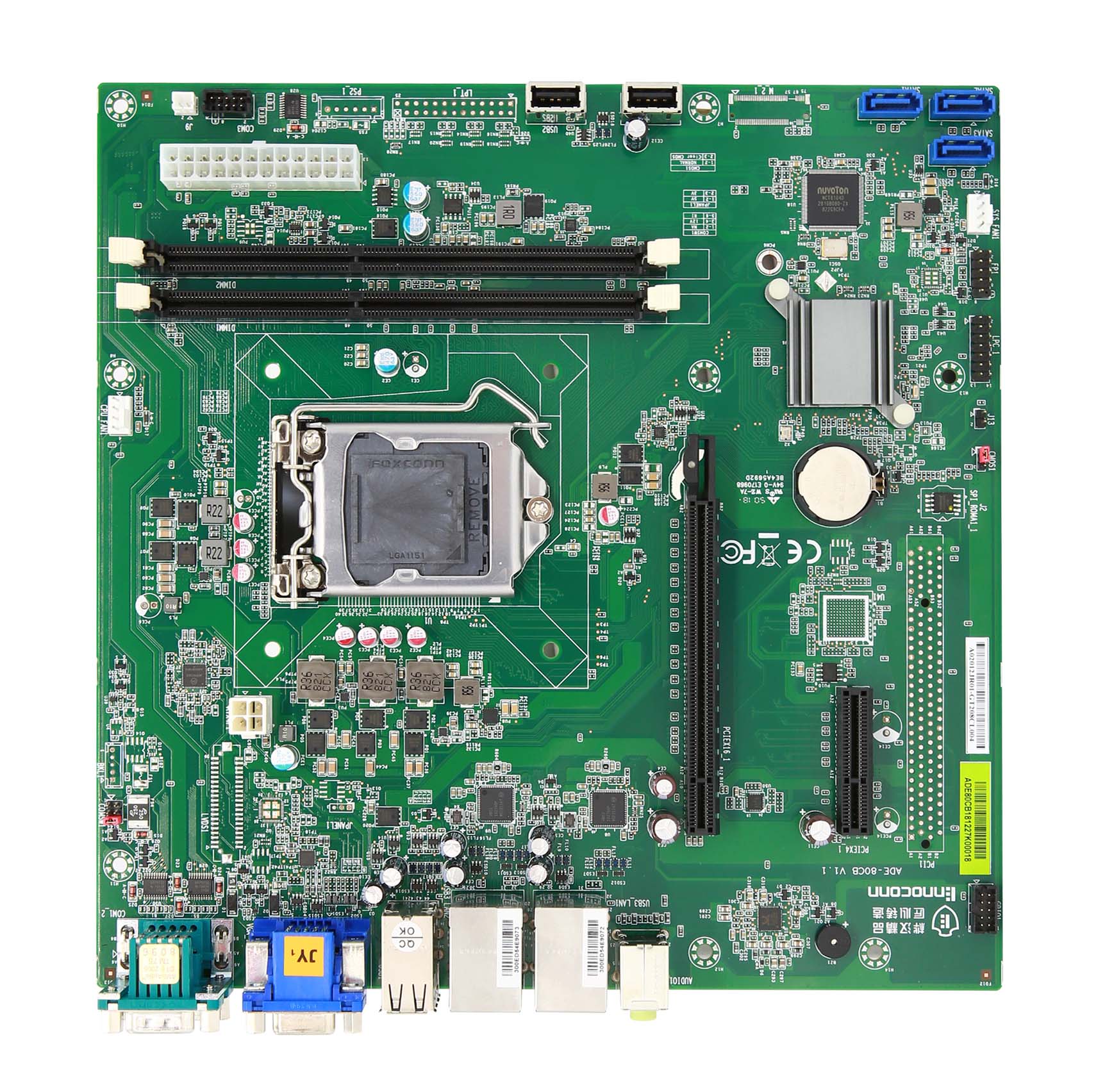

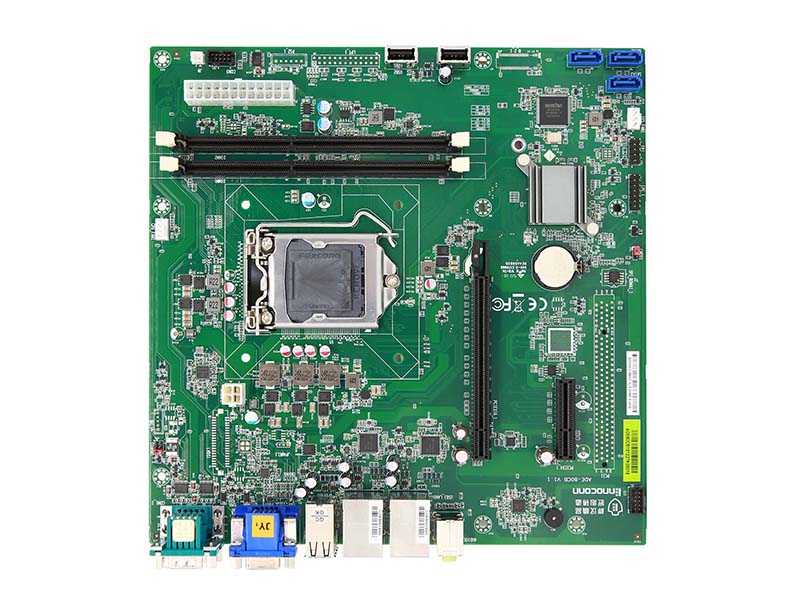

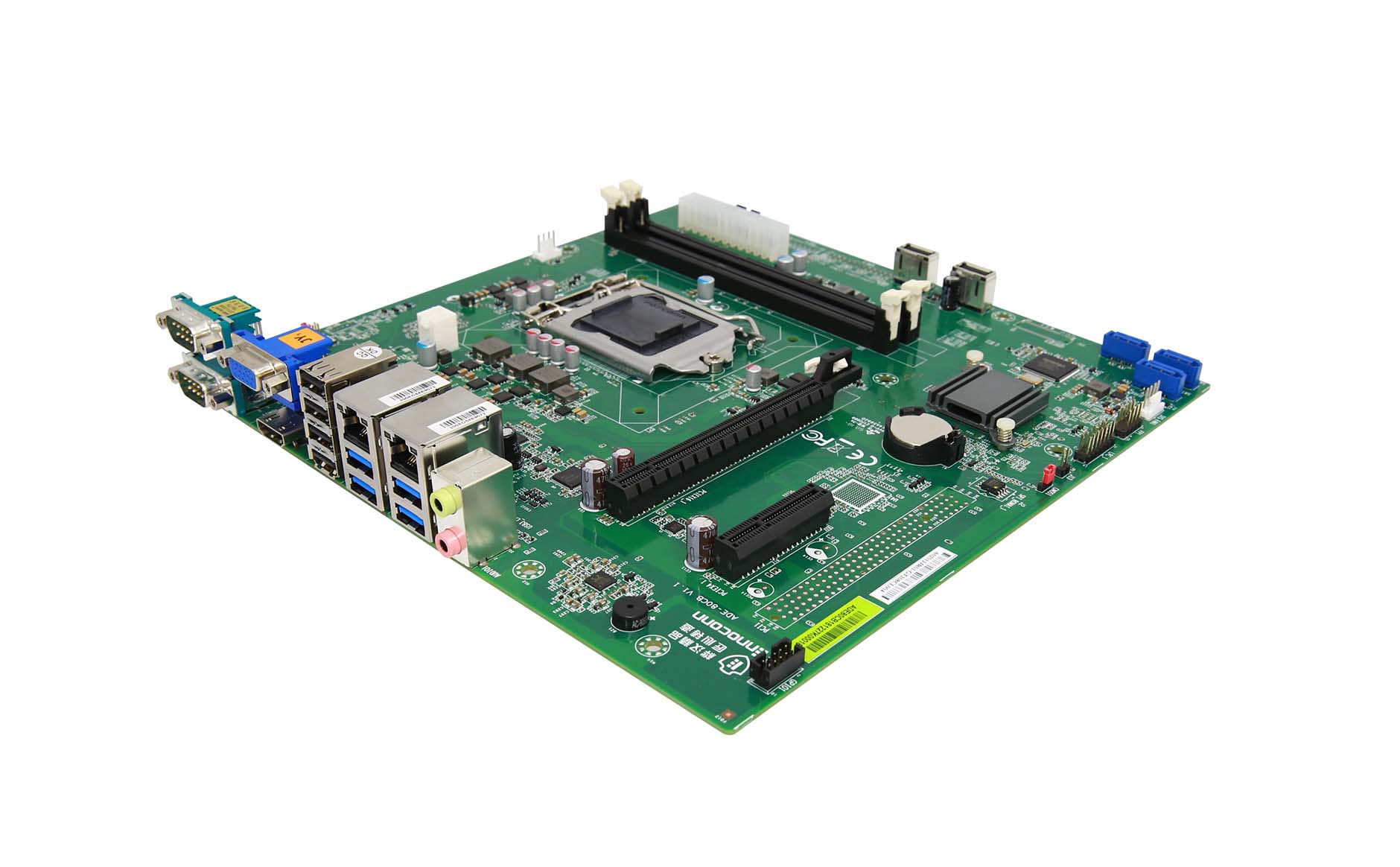

Micro-ATX 工業主板 CEB-H11M-A101

Intel H110 Chipset, 2 x LAN, VGA/HDMI, 3 x COM, 10 x USB, 2 x PCIe, Micro ATX MB

在線咨詢全國熱線
400-816-0035

Intel^{^?}6代/7代酷睿 i7/i5/i3/奔騰^{^?}/賽揚^{^?}處理器，功耗最高支援到65W
雙通道 DDR3L(1.35V)1333/1600MHz,高達16GB
支持VGA,HDMI, 獨立雙顯
支持雙 Intel GbEs,SATA3.0,USB3.0,8位GPIO
1個PCIe x16 (Gen3)和1 個 PCIe X4

產品規格

處理器 Processor	Intel^? 6th/7th Gen. Core ? i3/i5/i7, Pentium^?, Celeron^? Processor, LGA1151 Socket, TDP up to 65W
芯片組 Chipset	Intel^? H110
內存 Memory	Dual Channel, 2 x U-DIMM Slot, DDR3L (1.35V) 1333/1600MHz, up to 16GB
存儲 Storage	3 x SATA3.0, 1 x mSATA
顯示 Display	Intel^? HD Graphics
網口 Ethernet	1 x Intel^? I211AT GbE (10/100/1000 Mbps) 1 x Intel^? I219LM GbE (10/100/1000 Mbps)
音頻 Audio	Realtek^? ALC269 HD Audio codec, supports 2.1-channel
BIOS	AMI UEFI BIOS

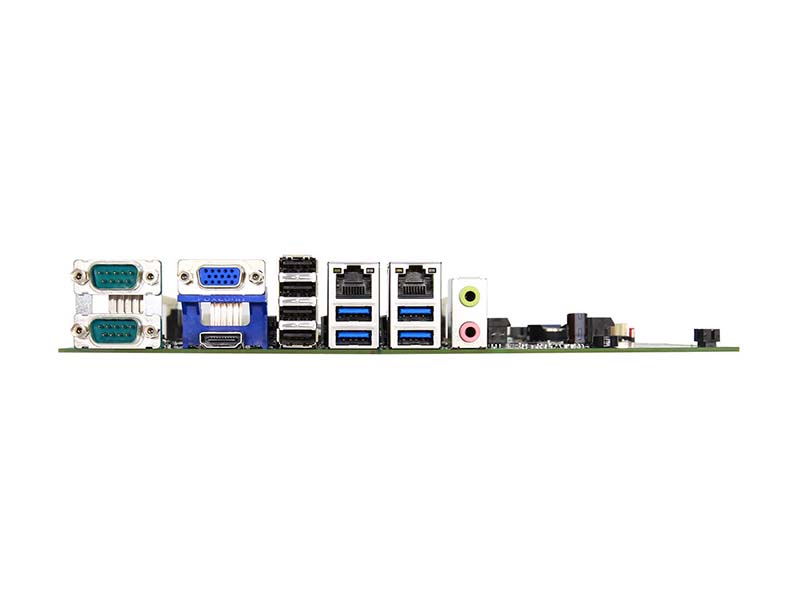

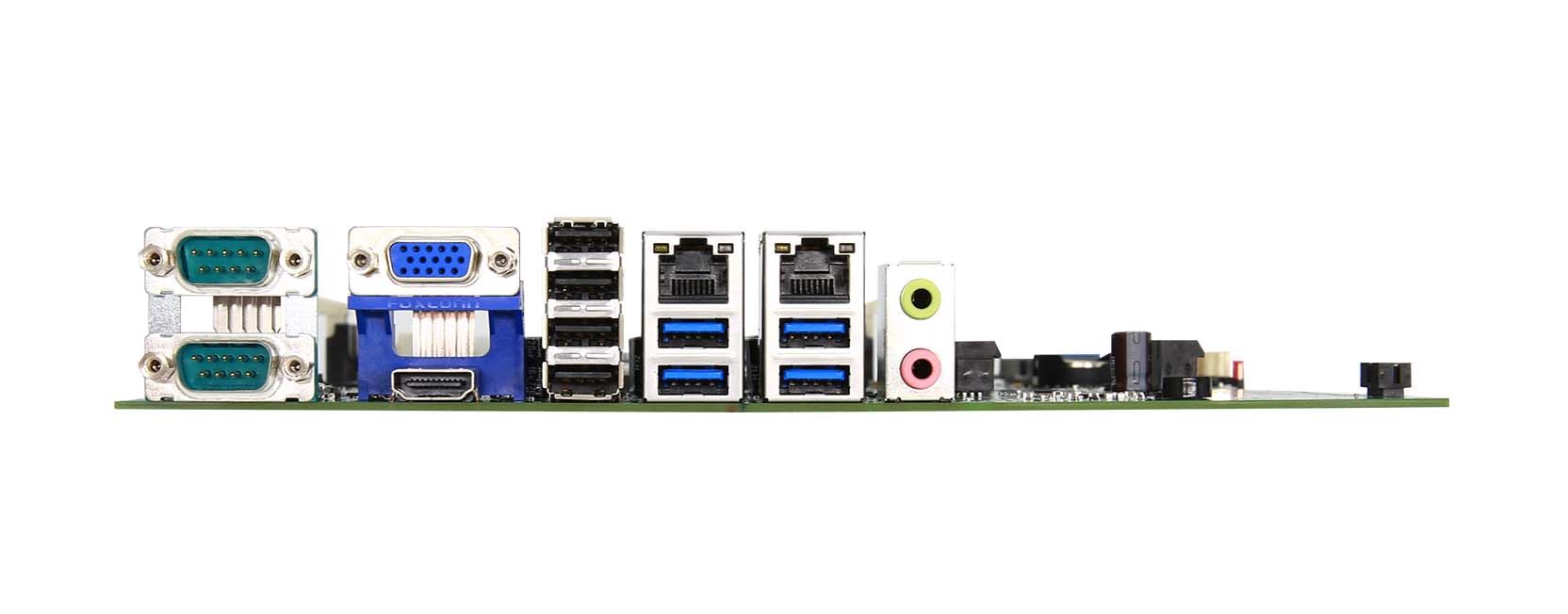

外部接口 Rear I/O	1 x HDMI: max resolution up to 4096 x 2304@24Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz 2 x RJ45 4 x USB2.0 (USB SR Pro supported), 4 x USB3.0 (USB SR Pro supported) 2 x RS232/422/485 with Atuo Flow 1 x Line-out, 1 x Mic-in
內部接口 Internal I/O	8 x RS232 1 x USB2.0, 1 x USB2.0 (Type-A) 1 x 16 bit GPIO 1 x LPT 1 x F_Panel (Power LED, HDD LED, Power button, reset button) 1 x PS/2
擴展接口 Expansion	1 x PCIe X16 1 x PCIe X4 2 x PCI
環境 Environment	操作溫度 Operation Temp.: 0℃ ~ 60℃ 存儲溫度 Storage Temp.: -40℃ ~ 85℃ 操作濕度 Operation Humidity: 5% ~ 95%, 非凝結狀態 Non-condensing 存儲濕度 Storage Humidity: 5% ~ 95%, 非凝結狀態 Non-condensing
電源輸入 Power Input	ATX
尺寸 Dimensions	244 x 244 mm (9.6" x 9.6")
操作系統 OS	6th Gen CPU : Windows7/8/10, Linux 7th Gen CPU : Windows10, Linux
