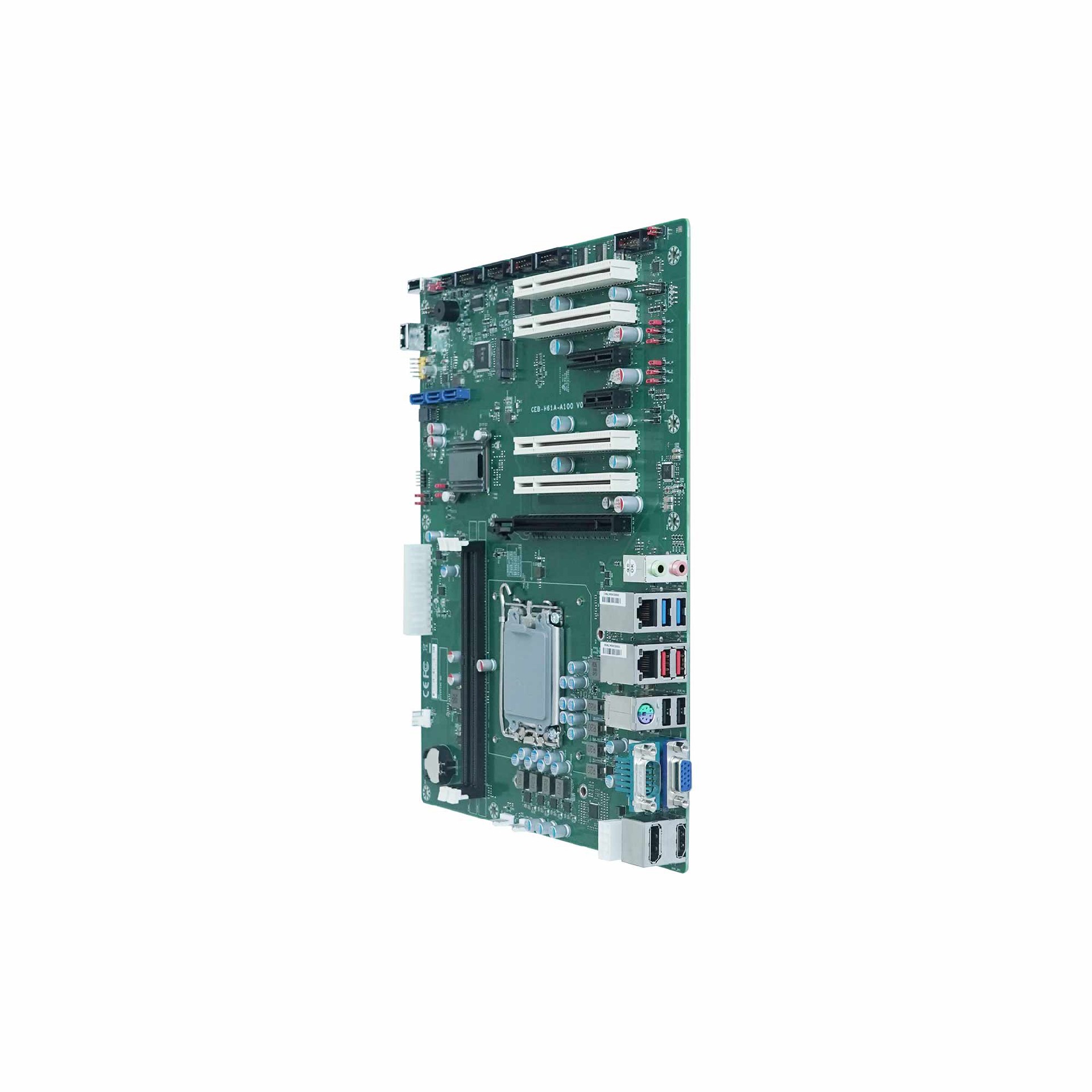

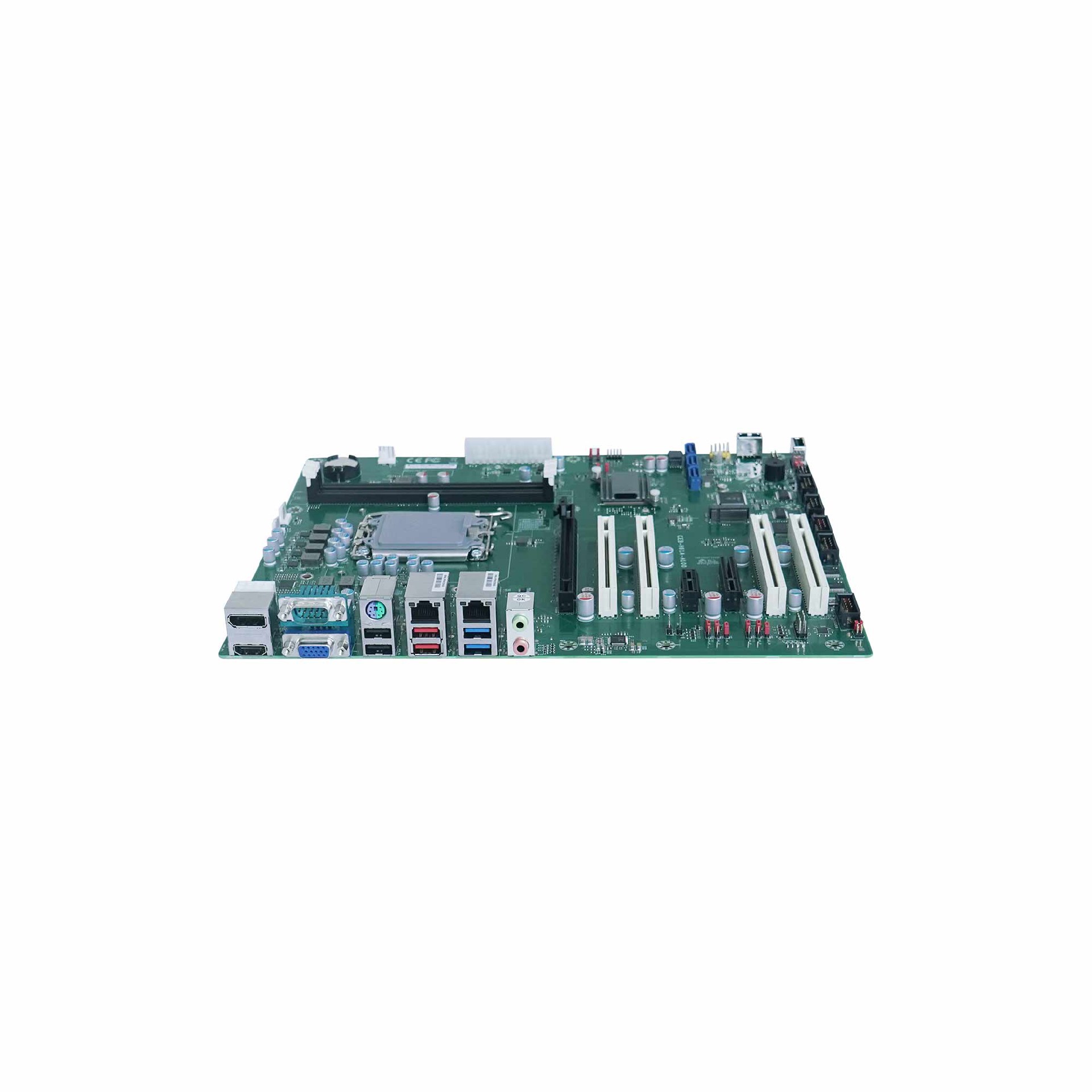

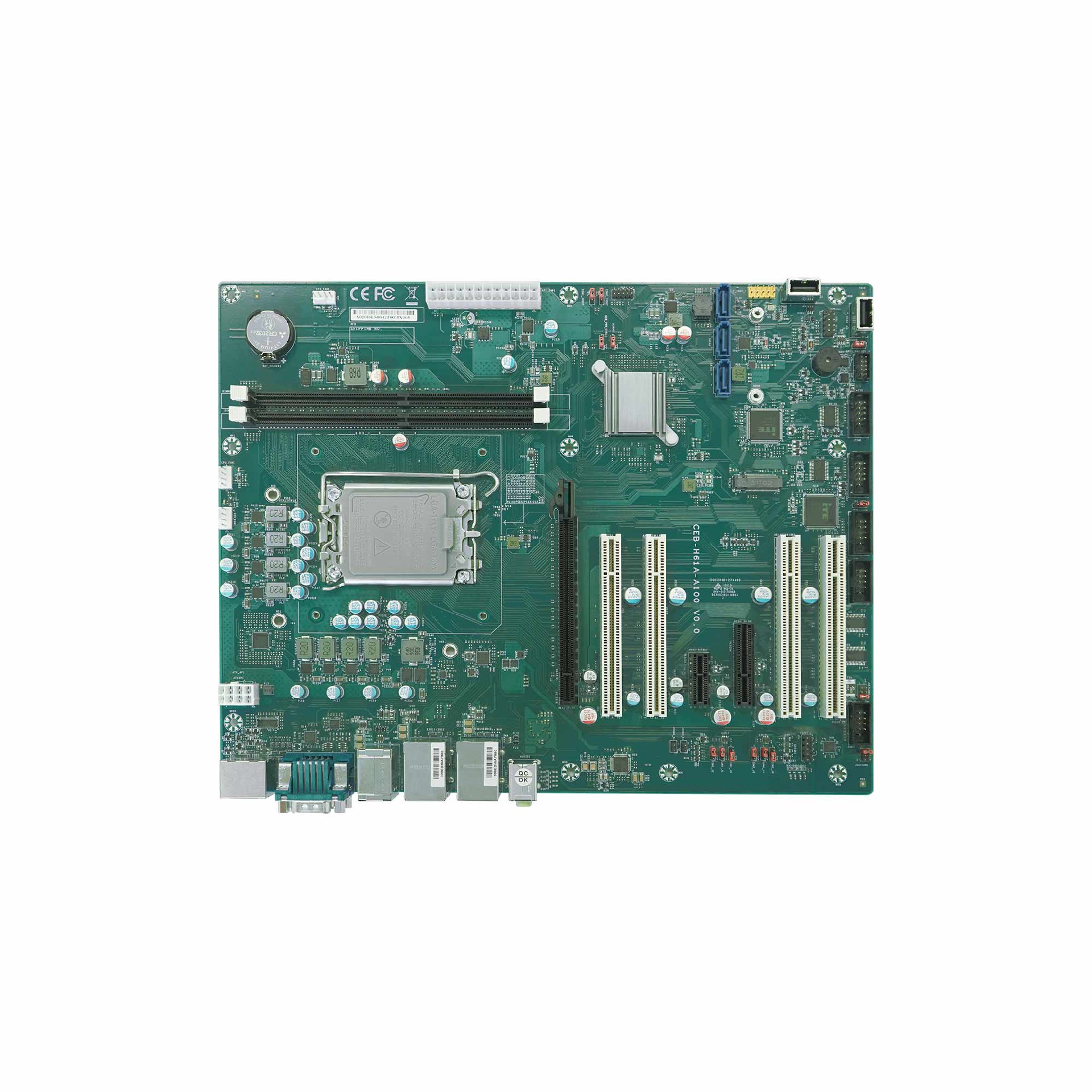

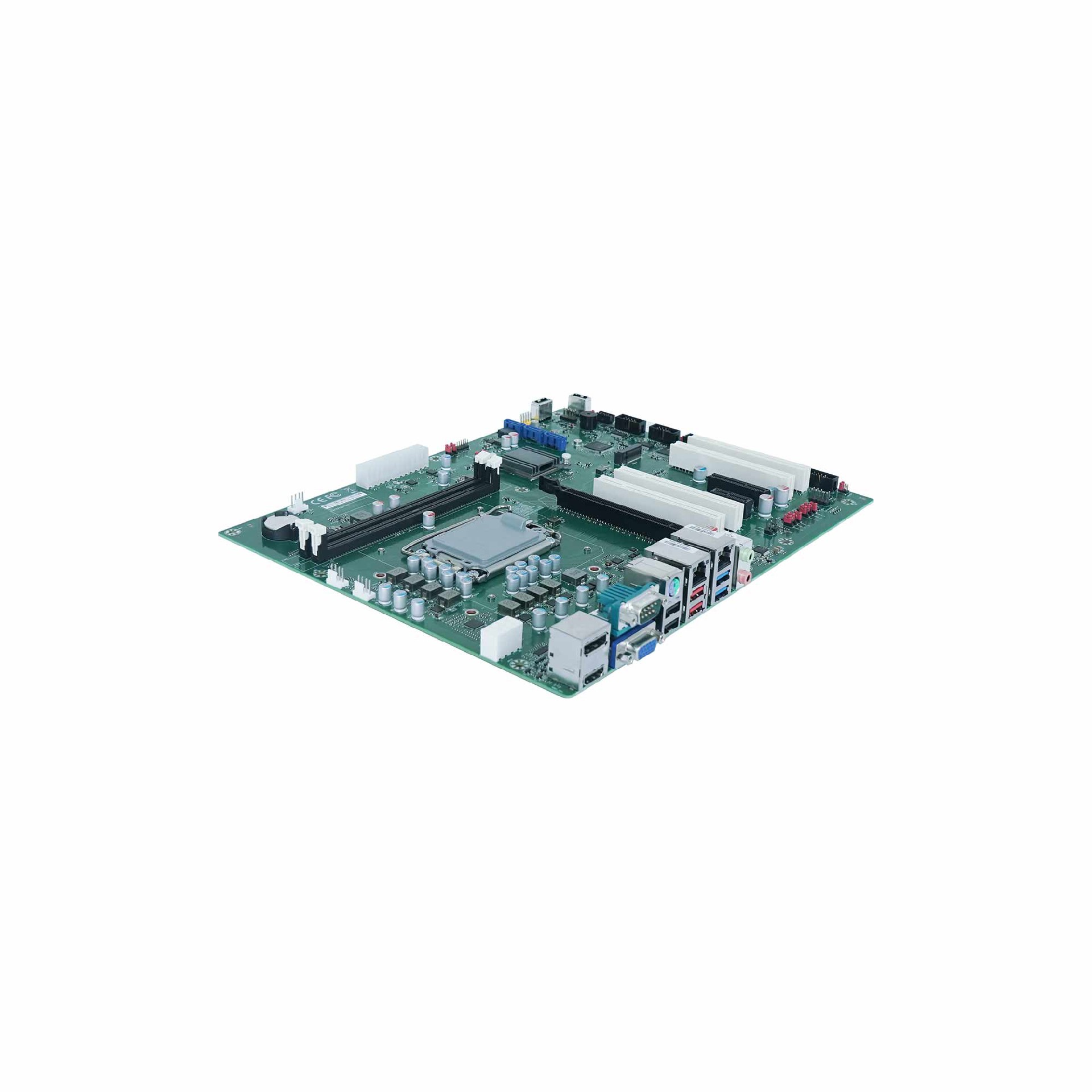

ATX工業主板：CEB-H61A-A100

ATX工業主板：CEB-H61A-A100Intel?12/13代酷睿 i9/i7/i5/i3/奔騰?/賽揚?處理器, 功耗最高支援到65W雙通道2插槽 DDR4 2400/2666/2933/3200MHz, 高達64GB支持VGA, HDMI2.0, DP++三屏顯示支持兩Intel GbEs, USB3.2 gen1/2, 8位GPIO支持3個SATA3.0支持2個RS-232/422/485和4個RS232串聯端口, 5V/12V電壓輸出海岸線USB部分端口

在線咨詢全國熱線
400-816-0035

Intel^?12/13代酷睿 i9/i7/i5/i3/奔騰^?/賽揚^?處理器, 功耗最高支援到65W
雙通道2插槽 DDR4 2400/2666/2933/3200MHz, 高達64GB
支持VGA, HDMI2.0, DP++三屏顯示
支持兩Intel GbEs, USB3.2 gen1/2, 8位GPIO
支持3個SATA3.0
支持2個RS-232/422/485和4個RS232串聯端口, 5V/12V電壓輸出
海岸線USB部分端口支援USB SR Pro技術
1 x PCIe X16 和1個PCIe X4 (X4 link), 1個PCIe X1, 4個PCI, 1個M.2(SATA3.0)2242/2280

ATX工業主板

處理器 Processor	Intel^? 12th/13th Gen Core ? i9/i7/i5/i3/Pentium^?/Celeron^? Processor, LGA1700, TDP up to 65W
芯片組 Chipset	H610E
內存 Memory	2 x DDR4 2400/2666/2933/3200 MHz U-DIMM Slot, up to 64GB
存儲 Storage	3 x SATA 3.0, 1 x M.2 (SATA 3.0 signal)2242/2280
顯示 Display	Intel^? UHD Graphics 770
網口 Ethernet	1 x Intel^? i219-V GbE, 1 x Intel^?226V/LM/IT(10/100/1000/2500 Mbps)
音頻 Audio	Realtek^? ALC888S/ALC897 HD Audio codec, supports 5.1-channel
BIOS	AMI UEFI BIOS

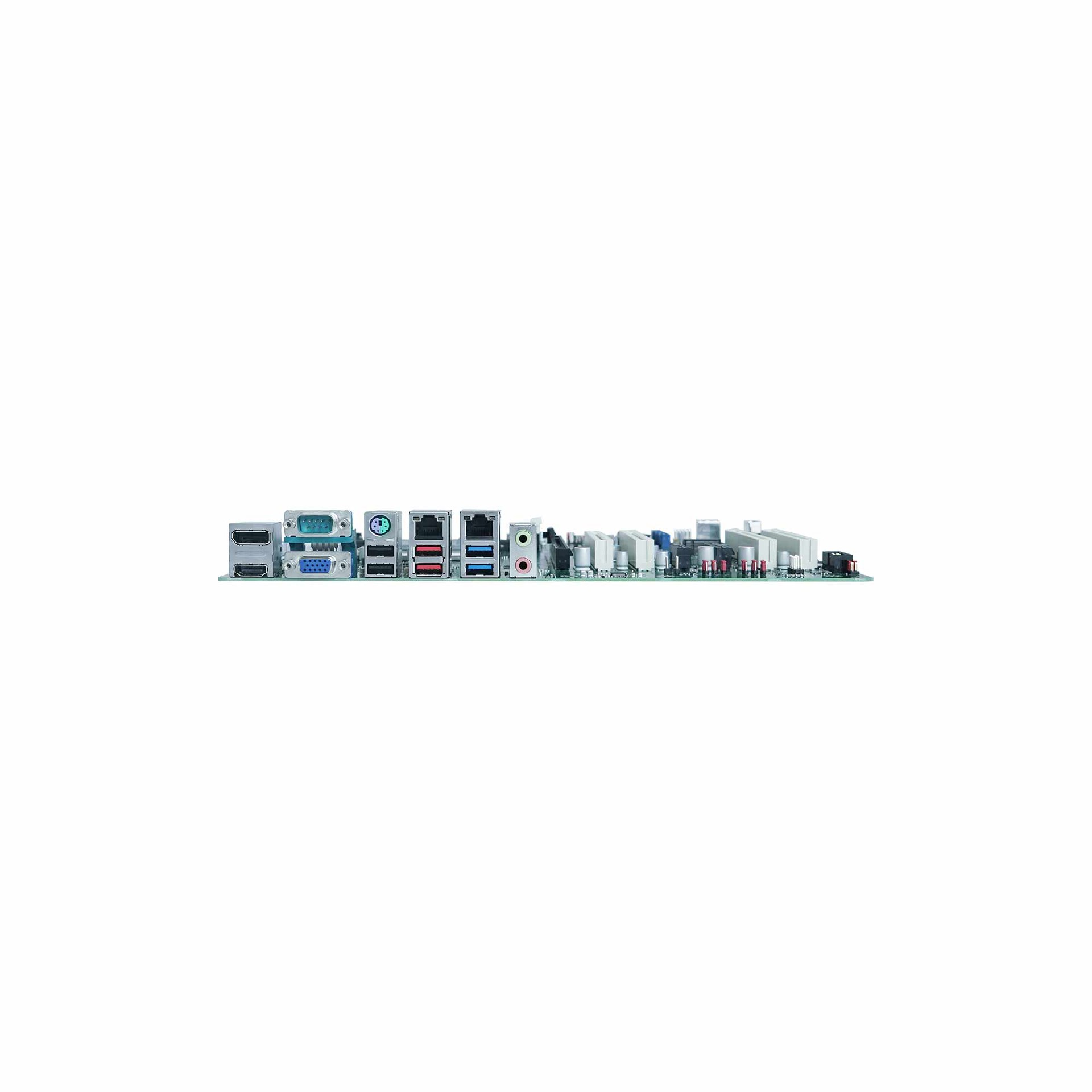

外部接口 Rear I/O	1 x VGA: max resolution up to 1920 x 1200 @ 60Hz 1 x HDMI2.0: max resolution up to 4096 x 2160 @ 60Hz 1 x DP++: max resolution up to 4096 x 2304 @ 60Hz 1 x RS232/422/485 with Auto Flow 2 x USB3.2 Gen2(LAN1) 2 x USB3.2 Gen1(LAN2) 2 x USB2.0 2 x RJ45 1 x PS/2(Mini-DIN-6) 1 x Line-out, Mic-in
內部接口 Internal I/O	1 x RS232/422/485 (with auto flow control), 4 x RS232 4 x USB2.0 (2 x Type-A) 1 x 8 bit GPIO 3 x SATA3.0 1 x CPU_FAN 2 x SYS_FAN 1 x F_AUDIO 1 x FP(power button,power led,reset,HDD led)
擴展接口 Expansion	1 x PCIe X16 (Gen4) 1 x PCIe X4 (Gen3) 1 x PCIe X1 (Gen3) 4 x PCI
信賴平臺模塊 TPM	Nuvoton TPM2.0(optional, need MOQ)
環境 Environment	操作溫度Operation temp: 0℃ ~60℃ 存儲溫度Storage temp: -40℃ ~85℃ 操作濕度Operation hum: 5%~90%, 非凝結 non-coagulation 存儲濕度Storage hum: 5%~95%, 非凝結 non-coagulation
電源輸入 Power Input	ATX
尺寸 Dimensions	304.8 x 244 mm (12" x 9.6")
操作系統 OS	Windows 10 64bit, Linux
看門狗 Watchdog Timer	System Reset, Programmable via software from 1 to 255 seconds

The PCIe X16 slot, from CPU, can only support graphic cards and storage cards according to the specification recommended by Intel. Other types of add-on cards might not work properly
